Ocal LR28-4X-G 3/4" PVC-Coated Ocal-Blue® LR-Style Conduit Body, Form-8 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # LR28-4X-G | North Coast Part # 581693
$247.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, LR Shape, Form 8 UL-4X, Size 3/4 Inch/21 Metric, Iron, Dark Gray

Technical Information

Applications
Act As Pull Outlets for Conductors Being Installed
Enclosure
NEMA 4X
Form Type
8
Hub Size
3/4
Material
Iron
Size
3 in
Standard
CSA,CULus E2969
TC Connection
Threaded
Trade Size
3/4 Inch
Type
Form 8 UL-4X Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508025182
Color
Gray
Finish
PVC Double-Coated/Dark Gray
GTiN
00704508025182
Product UPC
70450802518

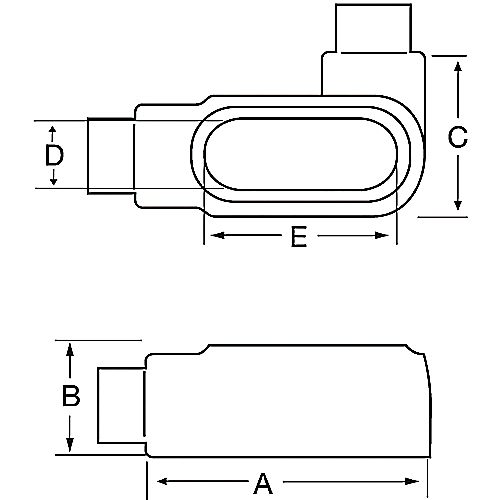

Dimensions

Height
2.31 Inch
Length
5.56 Inch
Width
1.69 in
Certifications
  • CSA
  • UL
Notes
  • Dimensional values are of uncoated conduit bodies.
Features
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
Application
  • Connect conduit sections
  • Provide openings for making splices and taps in conductors
  • Make 90° bends in conduit runs
  • Act as pull outlets for conductors being installed
  • Provide taps for branch conduit runs
  • Provide for access to conductors for maintenance and future system changes
