Product image for Ocal T38-4X-G 1" PVC-Coated Ocal-Blue® T-Style Conduit Body, Form-8 - Gray
Image thumbnail 0
Image thumbnail 1
Email

Ocal T38-4X-G 1" PVC-Coated Ocal-Blue® T-Style Conduit Body, Form-8 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # T38-4X-G | North Coast Part # 581697
$385.46/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
PVC Coated Conduit Body, T Shape, Form 8 UL-4X, Size 1 Inch/27 Metric, Iron, Dark Gray

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Enclosure
NEMA 4X
Hub Size
1 in
Material
Iron
Size
1 in
Standard
CSA,CULus E2969
TC Connection
Plug-In
Trade Size
1 Inch
Type
Form 8 UL-4X Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508025601
Color
Gray
Finish
PVC Double-Coated/Dark Gray
GTiN
00704508025601
Product UPC
70450802560

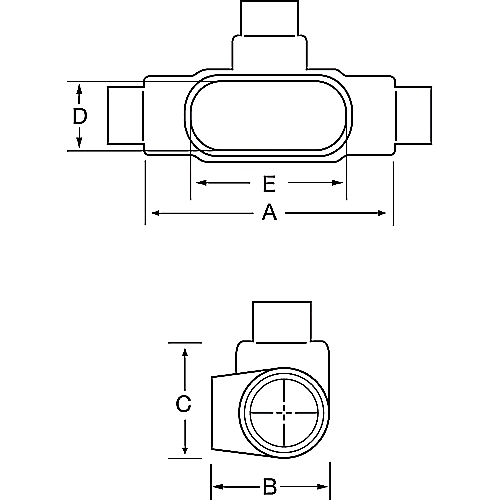

Dimensions

Height
2.63 Inch
Length
7.31 Inch
Width
2.25 in
Features
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
Application
  • Connect conduit sections
  • Make 90° bends in conduit runs
  • Provide openings for making splices and taps in conductors
  • Act as pull outlets for conductors being installed
  • Provide taps for branch conduit runs
  • Provide for access to conductors for maintenance and future system changes
Certifications
  • UL
  • CSA
Notes
  • Dimensional values are of uncoated conduit bodies.
