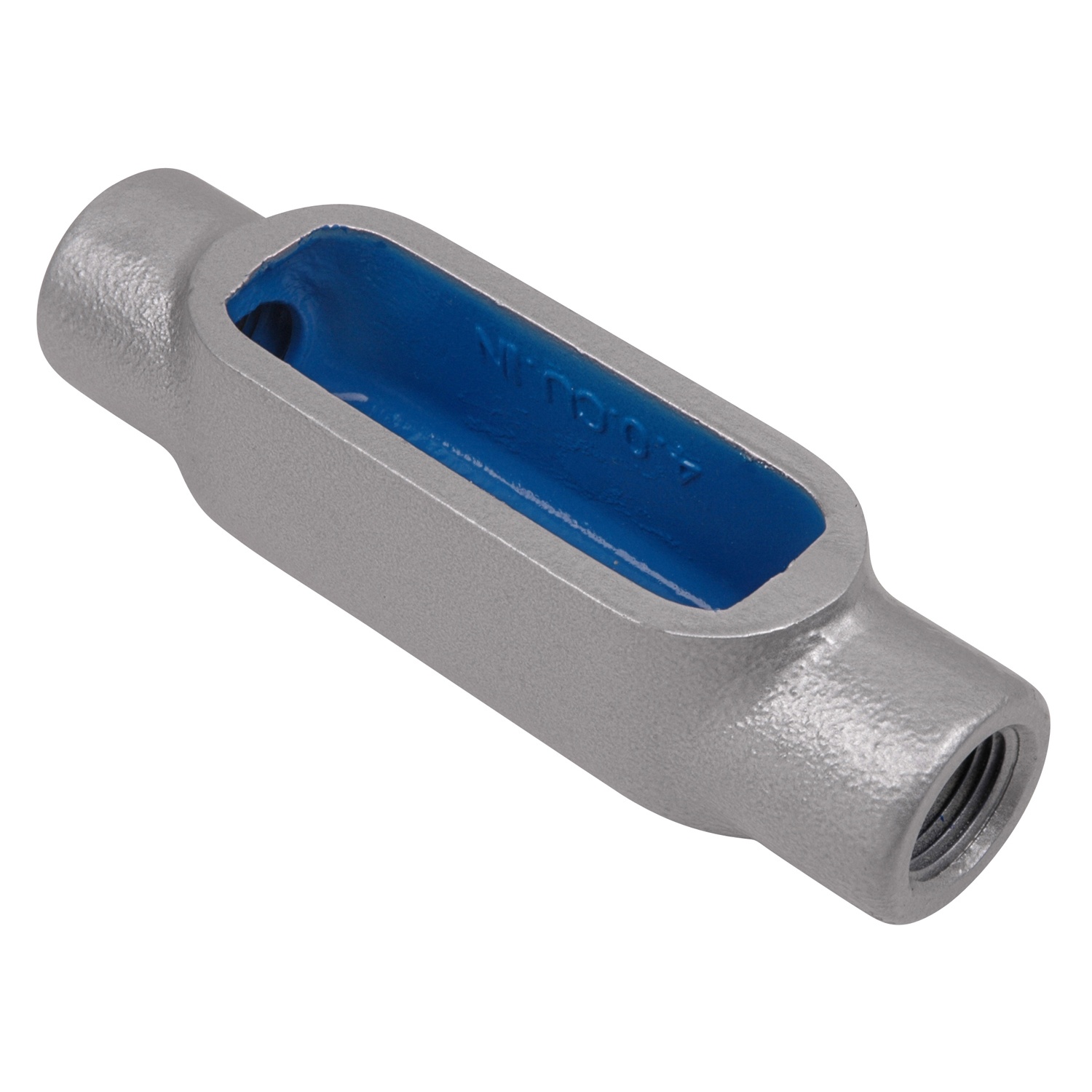

Product image for Ocal C18-4X-G 1/2" PVC-Coated Ocal-Blue® C-Style Conduit Body, Form-8 - Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ocal C18-4X-G 1/2" PVC-Coated Ocal-Blue® C-Style Conduit Body, Form-8 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # C18-4X-G | North Coast Part # 581706
$223.17/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Auburn Closes 4:00pm PT
2 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
PVC Coated Conduit Body, C Shape, Form 8 UL-4X, Size 1/2 Inch/16 Metric, Iron, Dark Gray

Technical Information

Applications
Act As Pull Outlets for Conductors that are Stiff, Due to Large Size or Type of Insulation
Enclosure
NEMA 4X
Hub Size
1/2 in
Material
Iron
Size
1/2 in
Trade Size
1/2 Inch
Type
Form 8 UL-4X Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal-Blue®

General Product Info

12-Digit UPC
704508023928
Color
Gray
Finish
PVC-Coated/Dark Gray
GTiN
00704508023928
Product UPC
70450802392

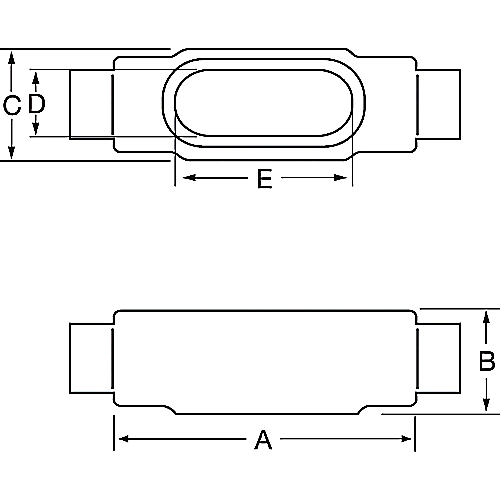

Dimensions

Height
1.44 Inch
Length
5.53 Inch
Width
1.38 in
Certifications
  • UL
  • CSA
Application
  • Provide taps for branch conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Provide openings for making splices and taps in conductors
  • Act as pull outlets for conductors being installed
  • Make 90° bends in conduit runs
  • Connect conduit sections
Features
  • Double coated superior corrosion protection, bodies and covers coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws.
  • UL Listed Type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow.
Notes
  • Dimensional values are of uncoated conduit bodies.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
