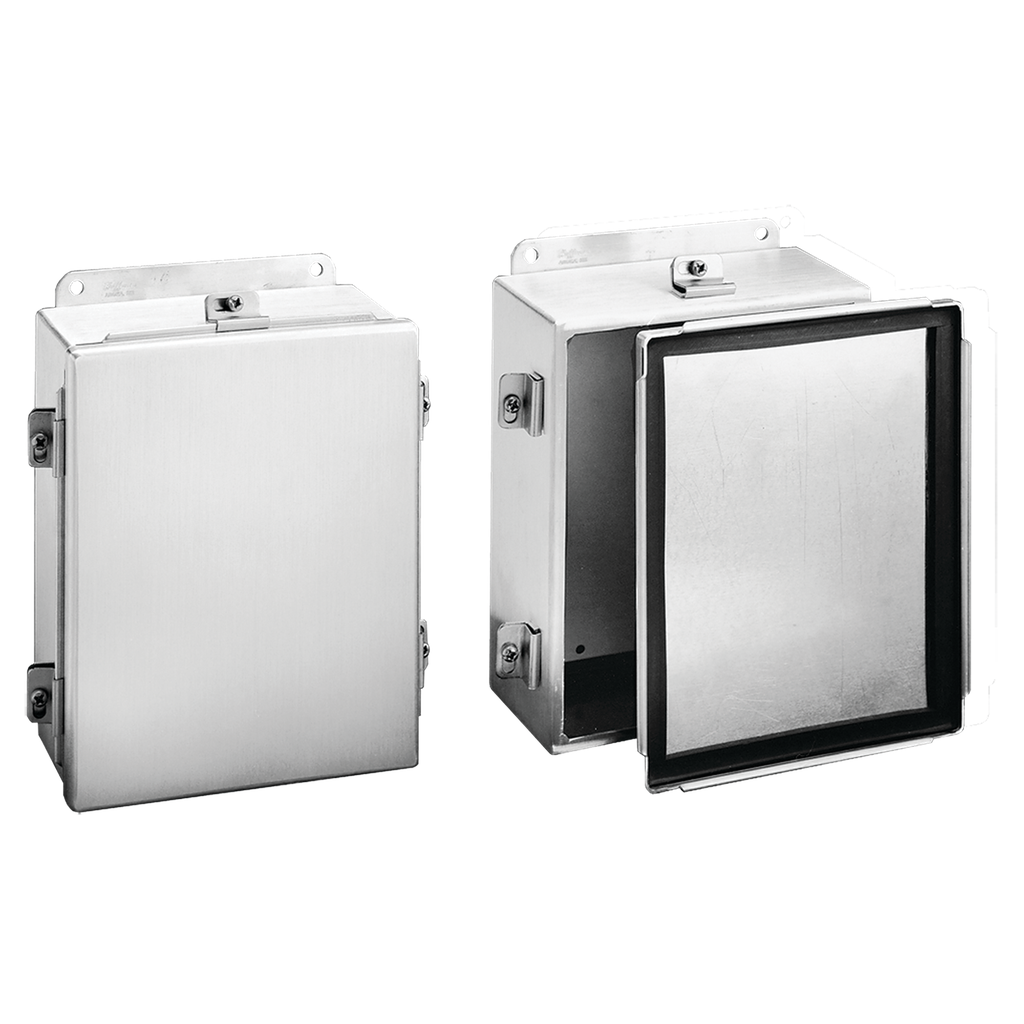

Product image for Hoffman A1008NFAL 10" x 8" x 4" Junction Box, Type-4X w/ Clamp Cover, Aluminum
Email

Hoffman A1008NFAL 10" x 8" x 4" Junction Box, Type-4X w/ Clamp Cover, Aluminum

Manufacturer: nVent Hoffman | Catalog # A1008NFAL | North Coast Part # 584073
$454.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Clamp-Cover Aluminum Enclosure is a lightweight enclosure solution that features a removable cover that secures on all sides via stainless steel clamps and screws. This enclosure is ideal for protecting components and controls in either corrosive indoor or outdoor environments, and maintains a Type-4X rating.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
IP Rating
66
Material
Aluminum
Size
10.00x8.00x4.00 in
Standard
12,4,4X,50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27525,File No. E61997,NEMA/EEM,Type 3R,UL 50,UL 508A Listed
Type
Aluminum single gang round receptacle cover

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510566401
Color
Unpainted
Finish
Brushed
GTiN
00783510566401
Product UPC
78351056640
Weight
3.18 lb

Dimensions

Depth
4 Inch
Height
10 Inch
Length
11-1/2 Inch
Thickness
2 mm
Width
8 in
Features
  • Aluminum enclosure
  • Seams continuously welded and ground smooth
  • Stainless steel screws and clamps on four sides of cover
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels
  • Enclosures are unpainted, with covers and sides of body having a smooth, brushed finish
