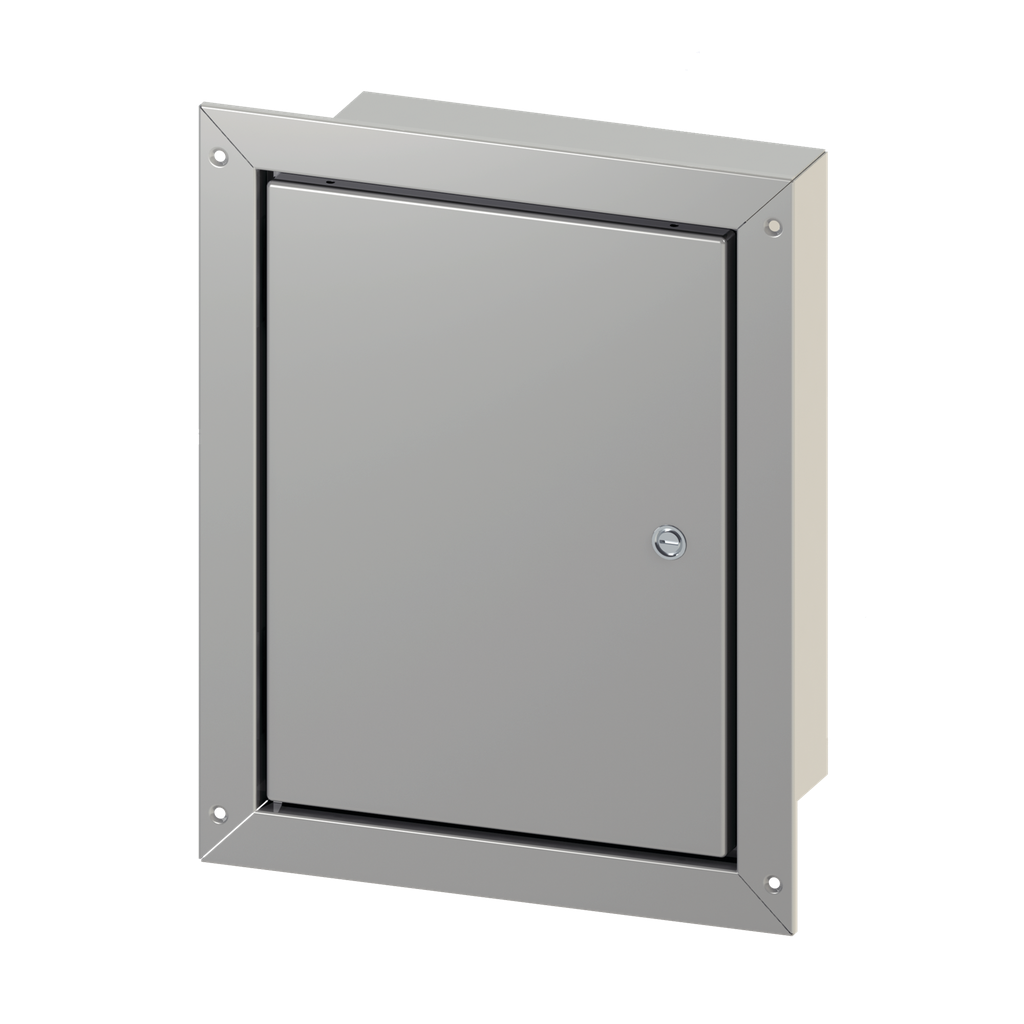

Product image for Hoffman CFM16126LG CONCEPT Flush-Mounted Enclosures, 16" x 12" x 6", Lt Gray, Steel
Email

Hoffman CFM16126LG CONCEPT Flush-Mounted Enclosures, 16" x 12" x 6", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CFM16126LG | North Coast Part # 585145
$717.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.

Technical Information

Applications
For Machine Control
Body Gauge
16
Body Thickness
1.52 mm
Color Coding
RAL 7035
Cover Type
Hinged, Quarter Turn Latches
Door Gauge
16
Gauge
16
IP Rating
66
Material
Steel
Mounting Type
Flush
Number of Latches
1
Size
16.00x12.00x6.00 in
Standard
CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510164591
Color
RAL 7035 Light Gray
Finish
Painted
GTiN
00783510164591
Product UPC
78351016459
Weight
19.9 lb

Dimensions

Depth
6 Inch
Height
16 Inch
Length
23.4 Inch
Width
12 in
Features
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210 degrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Flush-Mount models have a mounting frame that extends completely around the enclosure
