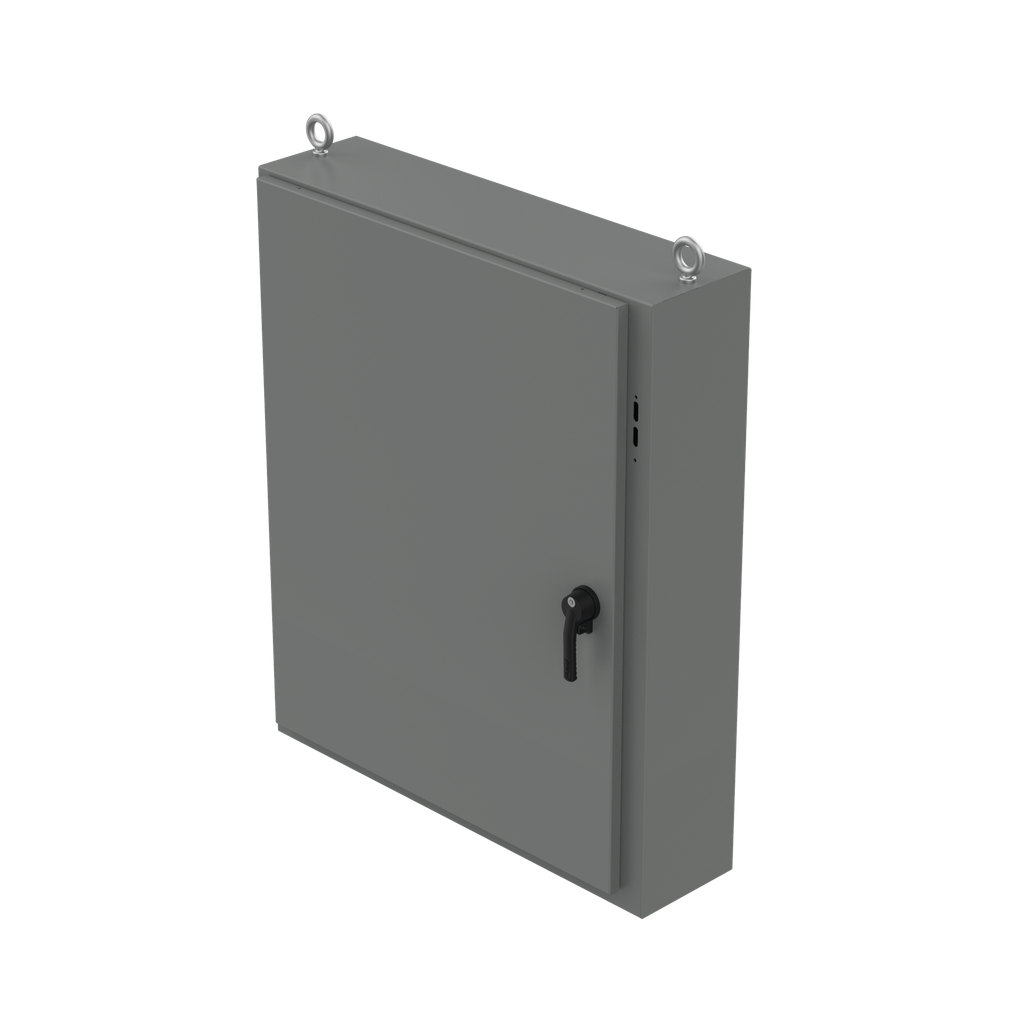

Product image for Hoffman A48x 1E4024 Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 48" x 40.25" x 24", Gray, Steel
Email

Hoffman A48x 1E4024 Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12, 48" x 40.25" x 24", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A48X1E4024 | North Coast Part # 585772
$2,352.13/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Body Thickness
.098 in
Color Coding
ANSI 61
IP Rating
55
Material
Steel
Size
48.00x40.25x24.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510136581
Color
Gray
Finish
Powder Coated
GTiN
00783510136581
Product UPC
78351013658
Weight
276 lb

Dimensions

Depth
24 Inch
Height
48 Inch
Length
31 Inch
Thickness
2.48972972972973 mm
Width
40.25 in
Features
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Removable centerposts for easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
  • Oil-resistant gasket
  • Removable .127-in. thick steel panels mount on collar studs
  • Master door is far right-hand door on all enclosures
  • Defeater on master door requires a screwdriver to open
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Enclosures with three to five doors have three stiffeners on rear of body
