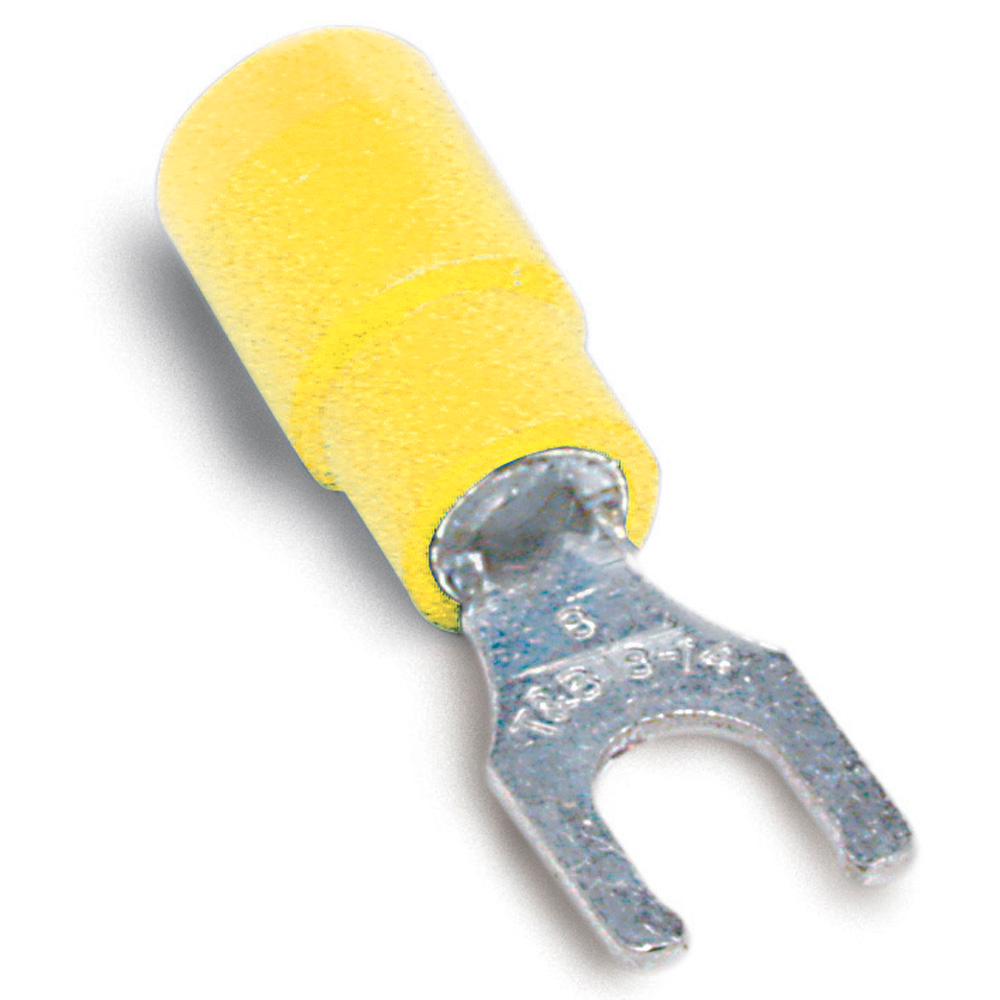

Thomas & Betts 10RC-8FLX 12-10 AWG Wire Range Expanded Insulated Vinyl Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-8FLX | North Coast Part # 58793
$310.58/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

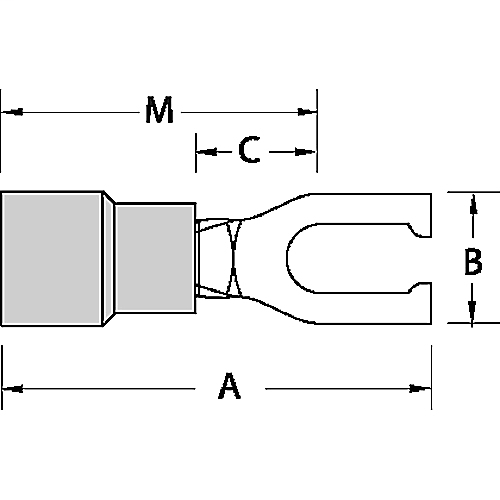

Expanded Vinyl-Insulated Locking Fork Terminal, Length 1.10 Inches, Width .37 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807256
Color
Yellow
Finish
Tin Plated
GTiN
05414363136354
Product UPC
78621080725
Used With
Round Conductors

Dimensions

Height
3.2 Inch
Thickness
.04 in
Width
4.7 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Certifications
  • UL
  • CSA
