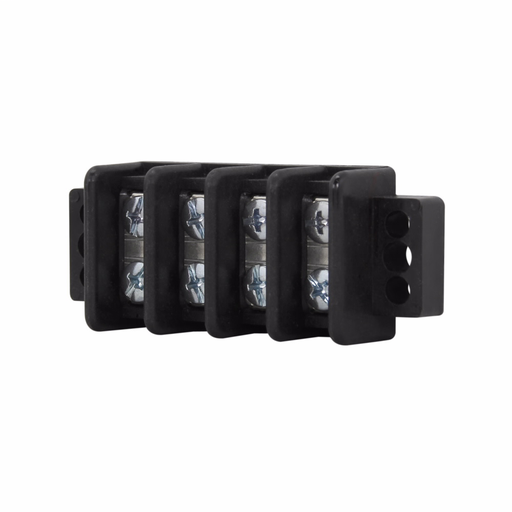

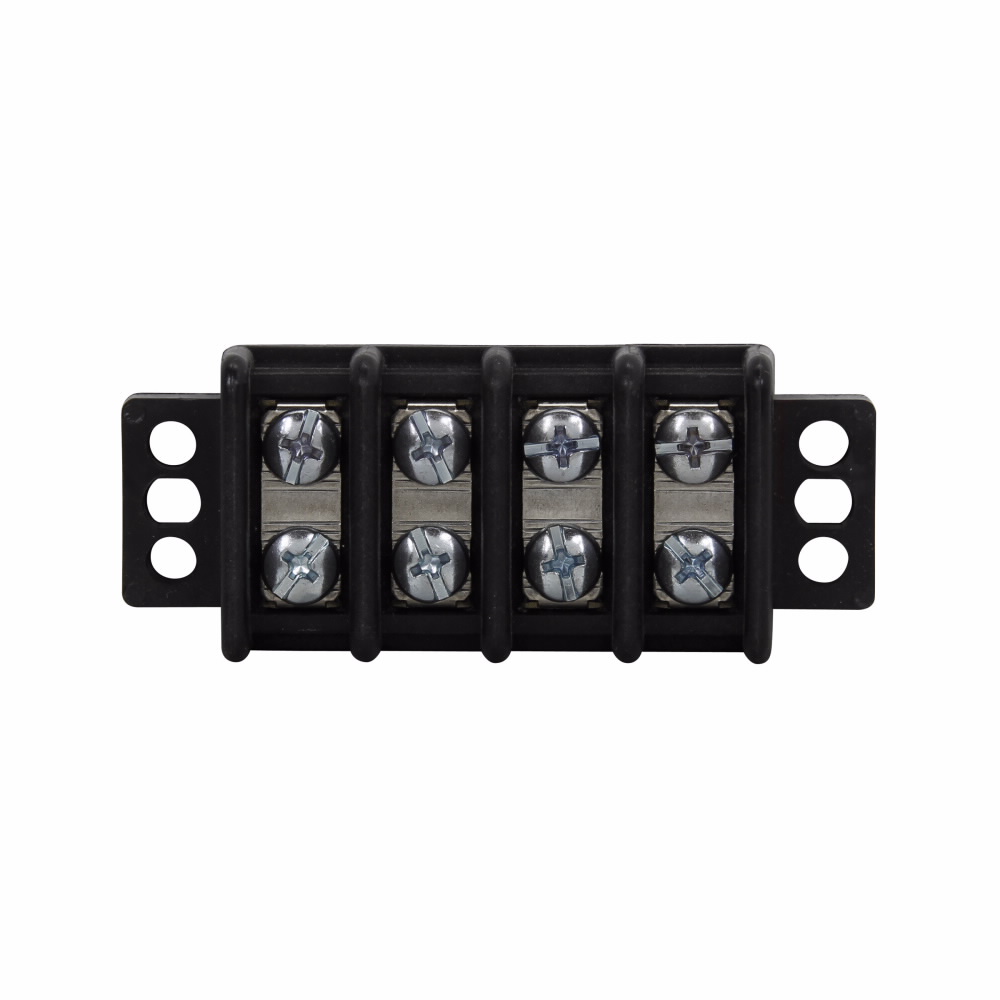

Bussmann Series TB300-04 4-Pole 32 to 8 AWG Thermoplastic Double Row Terminal Block

Manufacturer: Cooper / Bussman | Catalog # TB300-04 | North Coast Part # 590630
$9.20/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Eaton Bussmann TB300 series panel mount terminal block connector, Breakdown voltage 7500V, 600V, 30A, Double row, barrier, Four-pole, #8-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw

Technical Information

Amperage
30 Amp
Applications
Stationary Mach Equip In Factory - Robotics
Connection Type
Screw
Material
Brass
Mounting Type
Screw
Number of Poles
4 Pole
Operating Temperature
-40 To 130 degrees C
Screw Material
Zinc-Plated
Screw Size
#8
Screw Type
Phil-Slot
Size
3.25 In Length X 1.33 In Width X 0.81 In Height
TC Connection
#8-32 TPI Screw
Threads Per Inch
32
Type
Barrier,Double Row
Voltage
600 Volt

Manufacturer Information

Brand
Bussmann

General Product Info

12-Digit UPC
051712810555
Color
Black
GTiN
00051712810555
Product UPC
05171281055
Weight
.116 lb

Dimensions

Height
.81 in
Length
3-1/4 Inch
Width
1.33 in
