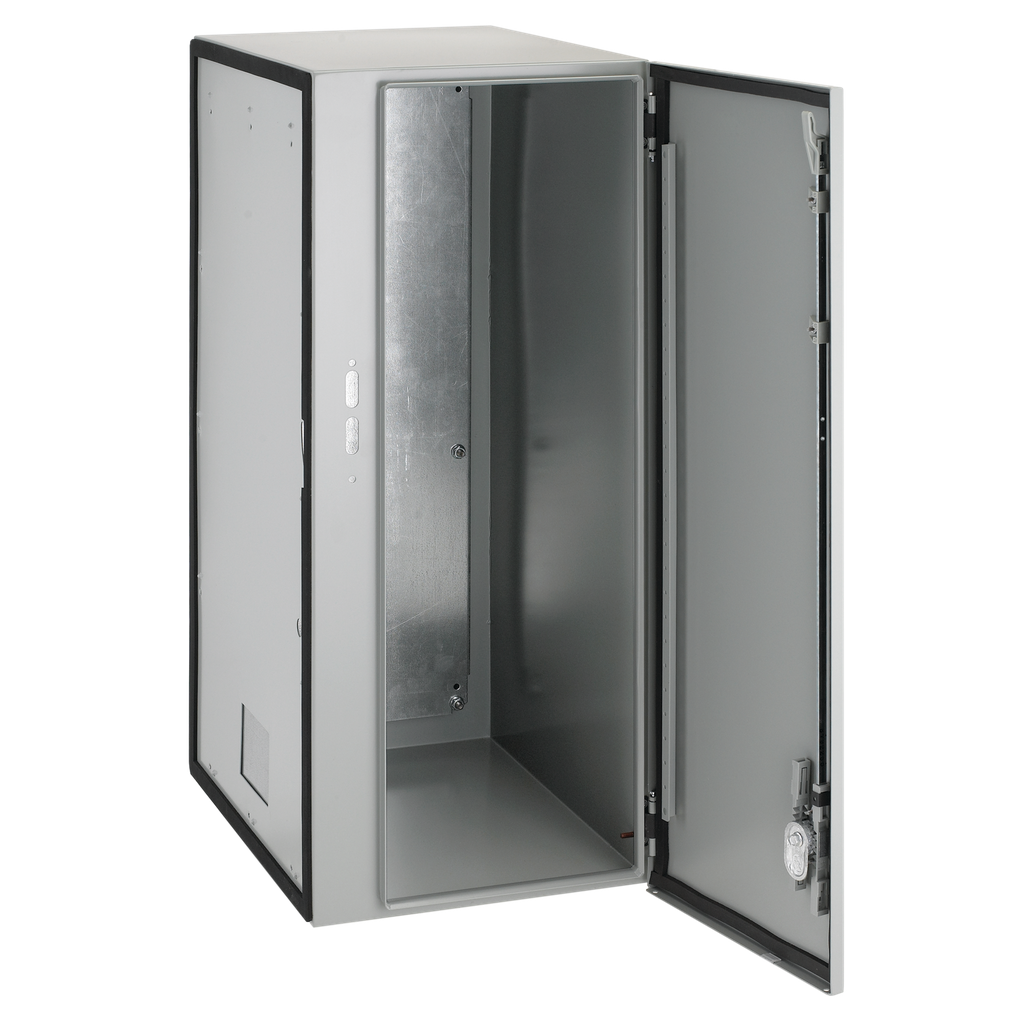

Product image for Hoffman AXD20 20 Inch Deep External Disconnect Enclosure
Email

Hoffman AXD20 20 Inch Deep External Disconnect Enclosure

Manufacturer: nVent Hoffman | Catalog # AXD20 | North Coast Part # 592330
$1,916.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the Sequestr Enclosure. Power is passed-through to the main enclosure.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Color Coding
ANSI 61
Material
Steel
Size
34.45x14.00x20.12 in
Type
SEQUESTR Preferred Cutout Disconnects

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Sequestr™

General Product Info

12-Digit UPC
783510169435
Color
Gray
Finish
Powder Coated
GTiN
00783510169435
Product UPC
78351016943
Weight
72.5 lb

Dimensions

Depth
20.12 Inch
Height
23-3/4 Inch
Length
37-3/4 Inch
Thickness
1.52 mm
Width
14 in
Features
  • Interlocks with doors of main control cabinet when the disconnect switch is powered ON
  • Maintains UL Type 12 rating
  • Provision for pass-through power into the main cabinet - blank plate for customer modification
  • Preferred disconnect cutout
  • Quarter-turn screwdriver slot latch
  • Hidden hinges
  • Bonding provision on door
  • Conductive back panel included
  • Installation hardware and templates included
  • Continuously welded and ground seams all around
  • Hinged on right side
