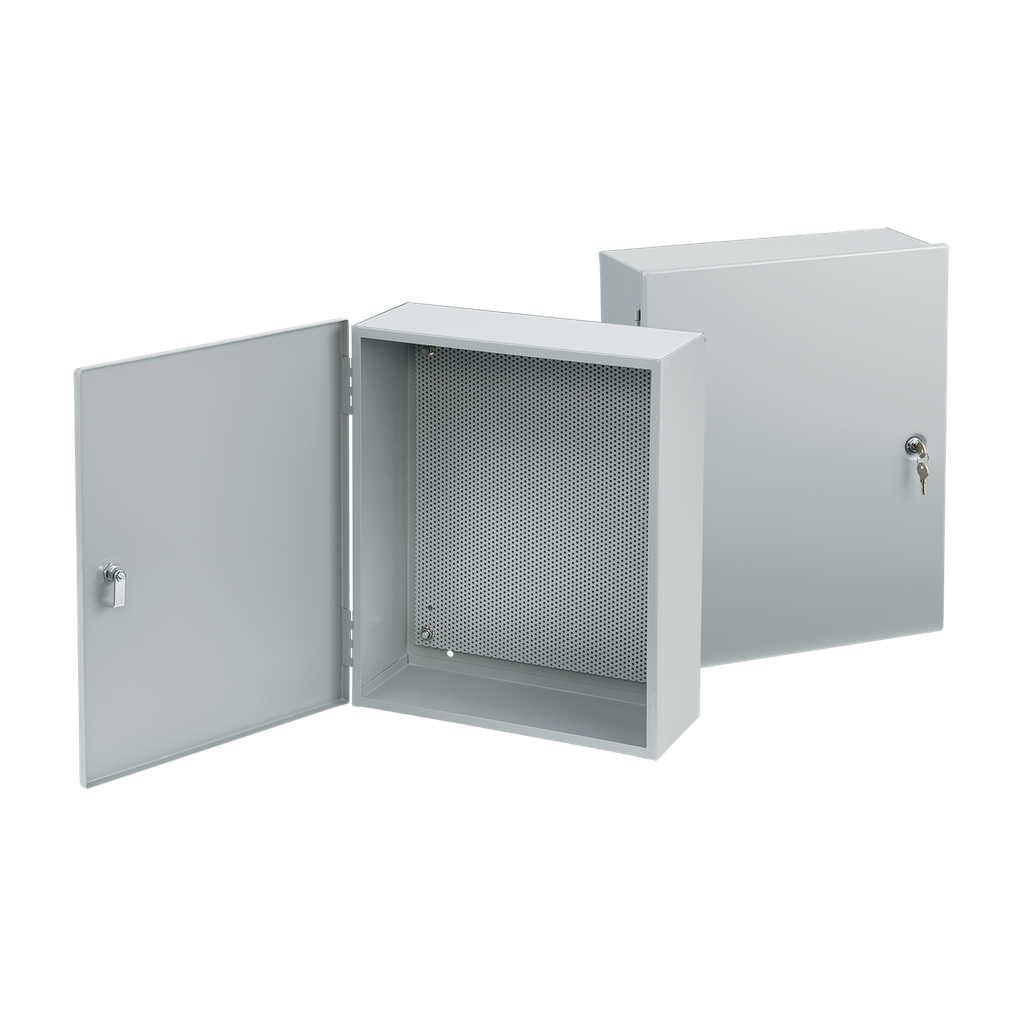

Product image for Hoffman A3624AT1PP Locking Integrated Perforated Panel Enclosure, Type 1, 36" x 24" x 6.62, Gray, Steel
Email

Hoffman A3624AT1PP Locking Integrated Perforated Panel Enclosure, Type 1, 36" x 24" x 6.62, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A3624AT1PP | North Coast Part # 592974
$601.33/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Hinged-Cover with Perforated Panel, Type 1, ships with pre-installed panel that accepts self-tapping screws and eliminates the need to measure, mark and drill when mounting components, which results in labor and time savings.

Technical Information

Applications
For Controls and Drives, Power Distributions
Color Coding
ANSI 61
Material
Steel
Size
36.00x24.00x6.62 in
Standard
50E Listed,CUL Listed Per CSA C22.2 No 40,File No. E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Type
Type 1, Panel Locking, Pre-Punched

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510160883
Color
Gray
Finish
Powder Coated
GTiN
00783510160883
Product UPC
78351016088
Weight
65 lb

Dimensions

Depth
6.62 Inch
Height
36 Inch
Length
36 Inch
Thickness
1.9 mm
Width
24 in
Features
  • Door has key lock quarter-turn latch; two keys included
  • Select models have concentric knockouts on four sides
  • Includes removable, 16-gauge, ANSI 61 gray, perforated panel
