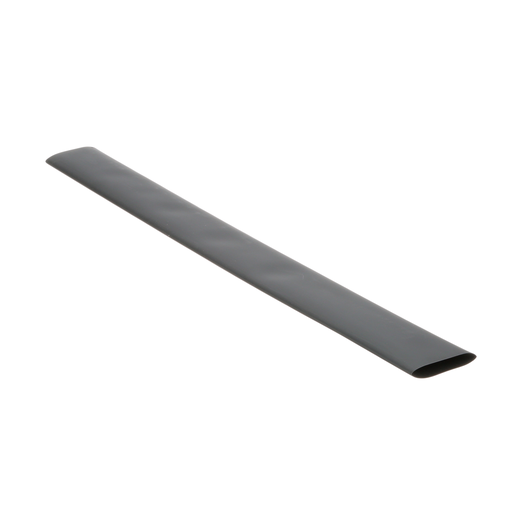

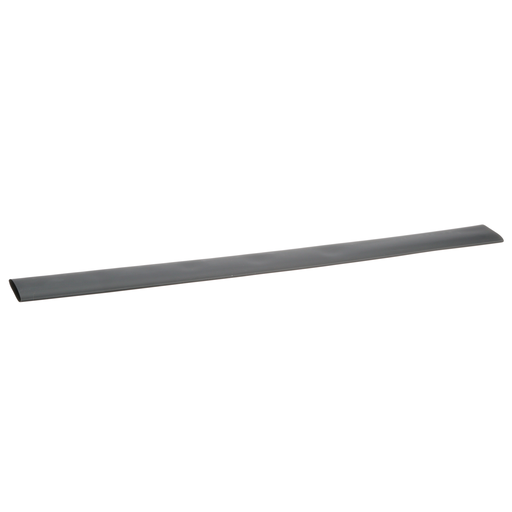

Panduit HSTT150-48-5 1.5 Inch 38.1 mm Diameter Black Thin Wall Heat Shrink Tubing

Manufacturer: Panduit | Catalog # HSTT150-48-5 | North Coast Part # 593009
$23.93/ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet
The HSTT150-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67.F to 275.F (-55.C to 135.C). Flame retardant, cross-linked polyolefin. 1.50. Diameter x 4. Long (38.1 mm x 1.2 m). Color Black. 5 per package.

Technical Information

Applications
For Dry Locations
Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Type
Flame Retardant

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983905966
Color
Black
GTiN
00074983905966
Product UPC
07498390596

Dimensions

Inside Diameter
19.1 mm
Length
3.94 Inch
Outside Diameter
38.1 mm
Overall Length
4 ft
Thickness
1 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China
Standards and Certifications
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Prop 65
  • No
