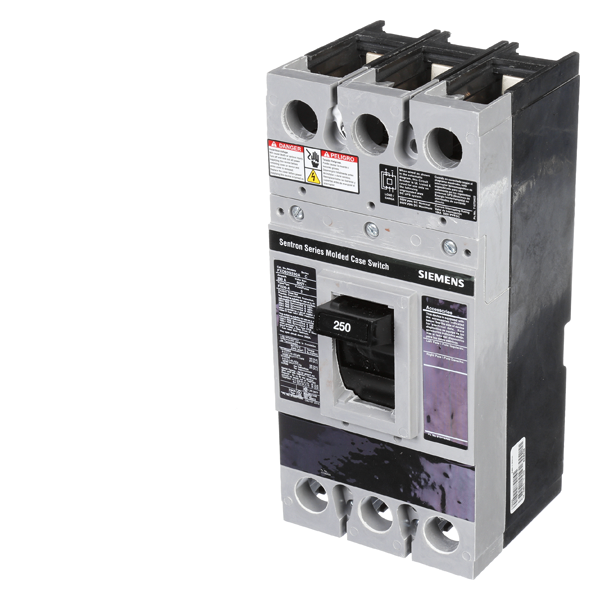

Product image for Siemens FXD63S250A 3-Pole 250 Amp 600 VAC 22 kA Molded Case Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

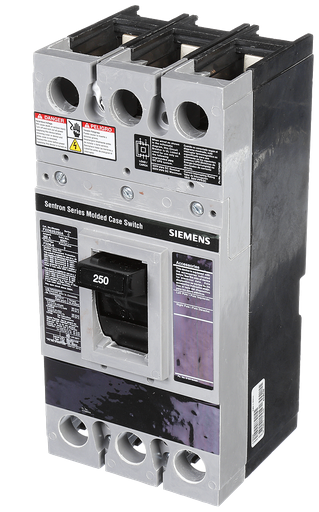

Siemens FXD63S250A 3-Pole 250 Amp 600 VAC 22 kA Molded Case Switch

Manufacturer: Siemens | Catalog # FXD63S250A | North Coast Part # 596130
$2,515.71/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 250A, Non-interchangeable, Molded Case Switch with Automatic Self Protection, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
250 Amp
Applications
For Molded Case Switch
Current
250 Amp
Enclosure
Varying
Frame
FXD6
Frequency
50/60 Hz
Interrupt Rating
18, 22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
3200 A
Trip Type
Thermal Magnetic
Type
FXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643212367
GTiN
00783643212367
Product UPC
78364321236
Weight
8.600 lb

Dimensions

Height
6.9 Inch
Length
11.2 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Mexico
