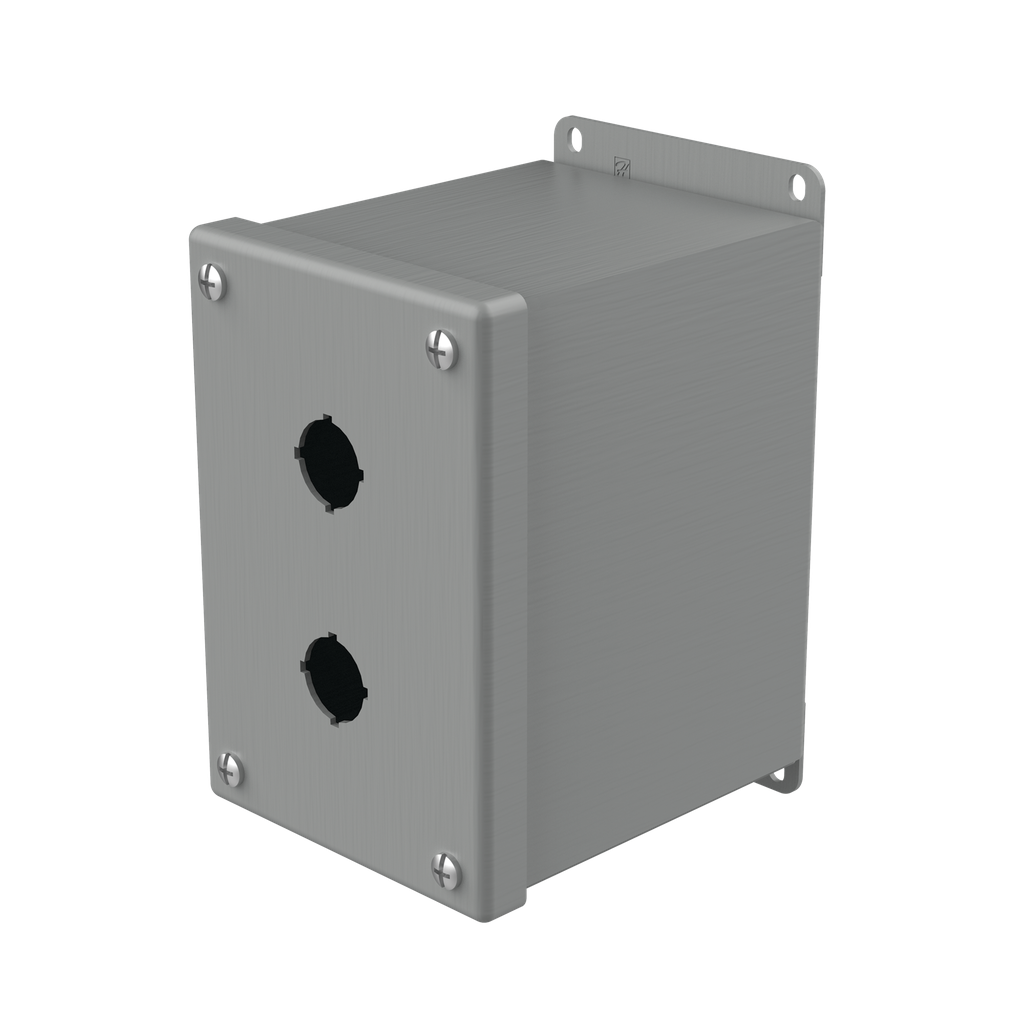

Product image for Hoffman E2PBXM Extra-Deep Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel
Email

Hoffman E2PBXM Extra-Deep Pushbutton Enclosures, Type 12, 2PB x 22.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E2PBXM | North Coast Part # 597008
$208.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.

Technical Information

Applications
For Push Buttons and Switches
Color Coding
ANSI 61
Gauge
14 AWG
Material
Steel
Number of Holes
2 Hole
Size
2PB x 22.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
2-Hole, Extra Deep

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510130367
Color
Gray
Finish
Powder Coated
GTiN
00783510130367
Product UPC
78351013036
Used With
22.5 mm Push Button
Weight
3.4 lb

Dimensions

Depth
121 mm
Height
152 mm
Hole Size
22.5 mm
Length
7 Inch
Thickness
1.9 mm
Width
102 mm
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
