Product image for Hoffman A363012UC Locking Utility Cabinets, Type 1, 36" x 30" x 12", Gray, Steel
Email

Hoffman A363012UC Locking Utility Cabinets, Type 1, 36" x 30" x 12", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A363012UC | North Coast Part # 597716
$755.84/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Locking Utility Cabinets, Type 1, are available in key hook and shelf models, are used to protect fuses and other components and can be equipped with a combination lock for applications that require security.

Technical Information

Applications
Power Distribution
Color Coding
ANSI 61
Material
Steel
Size
36.00x30.00x12.00 in
Standard
50E Listed,CUL Listed Per CSA C22.2 No 40,File Number E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Type
Type 1 Boxes and Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510147648
Color
Gray
Finish
Powder Coated
GTiN
00783510147648
Product UPC
78351014764
Weight
89 lb

Dimensions

Depth
12 Inch
Height
13-1/2 Inch
Length
39-1/2 Inch
Thickness
1.9 mm
Width
30 in
Features
  • Removable door with reversible hinge; door can hinge from either left or right side and can be changed without tools
  • Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security

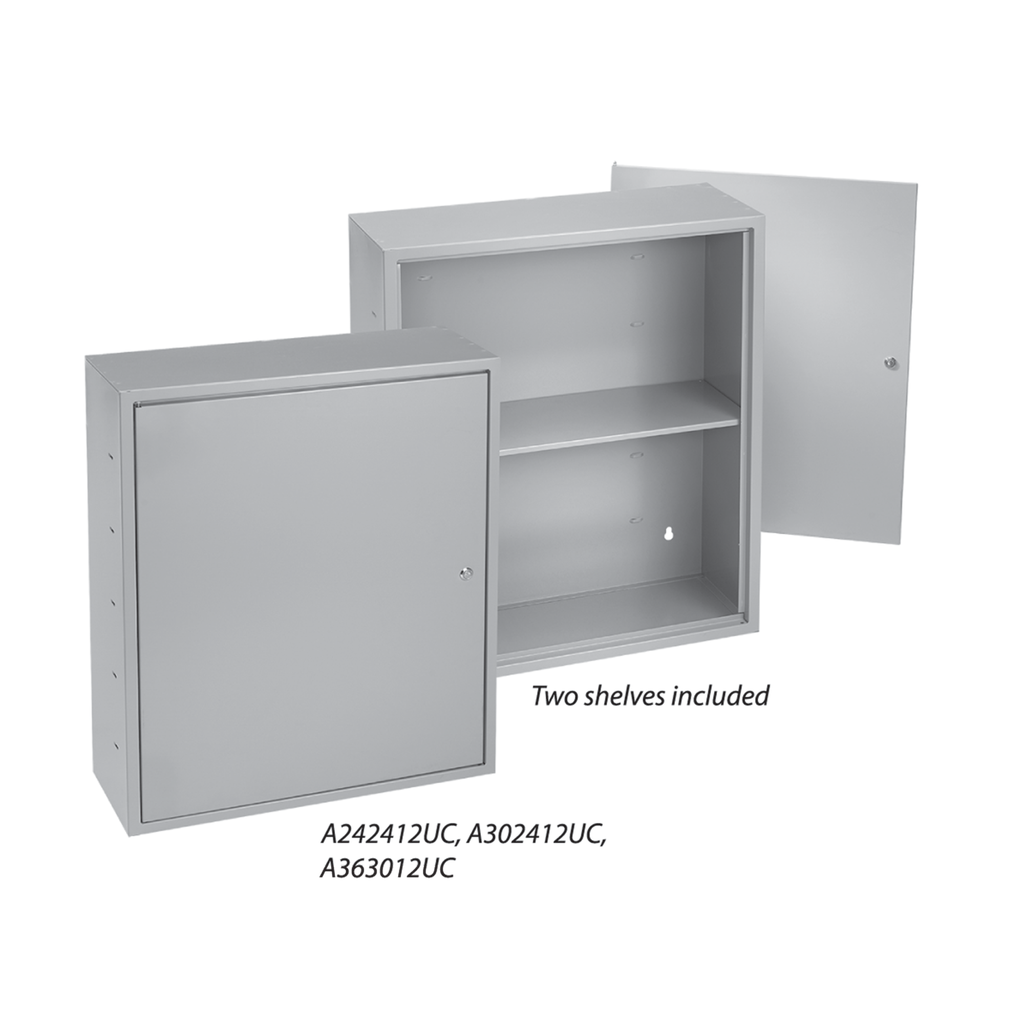

  • SHELF MODELS A242412UC, A302412UC, A363012UC: Shelf cabinets provide a level of security for storage of equipment, fuses, and other components
  • Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides
  • KEY HOOK MODEL A12122UC: Use as a key cabinet or a hanging locker to organize items that require a level of security
  • Key hook model has integral hooks assembled in door and back of enclosure
  • Four mounting keyholes in back of enclosure
  • Door has quarter-turn key lock; two keys included
  • Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam
  • Retractable spring hinge
  • No gasketing
