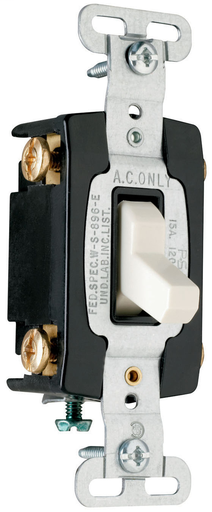

Pass & Seymour CSB15AC4-LA 15 Amp 120/277 VAC 4-Way Light Almond Glass Reinforced Nylon Screw Mounting Toggle Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # CSB15AC4LA | North Coast Part # 597777

$13.73/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Construction 4way Switch, Back & Side Wire, 15amp 120/277volt, Gray.

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
Commercial
Blade Dimensions
3.3 in
Contact Rating
15amp, 120/277vac
Duty Rating
Hard Use
Grade
Commercial
Number of Poles
2 Pole
Size
3.3"
Type
4-Way
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Light Almond
GTiN
00785007126334
Product UPC
78500712633
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • CSA Listed
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • For covering patents, see www.legrand.us/patents.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
