Panduit PCSB250-3-6Y Multi-Tap Mech Con, Double Sided, Tin Plt Al, PK6

Manufacturer: Panduit | Catalog # PCSB250-3-6Y | North Coast Part # 598869
$6,165.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet

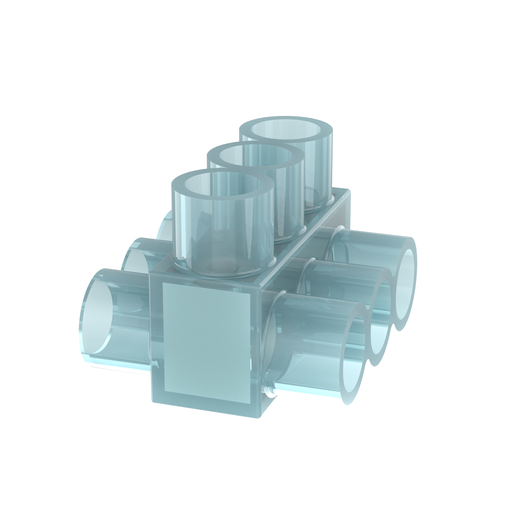

The PCSB250-3-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Technical Information

Amperage
NA Amp
Applications
Aluminum or Copper Code Conductors
Base Material
Aluminum
Material
Aluminum
Number of Ports
3
Standard
CSA,E2186,UL
Temperature Rating
NA
Type
Mechanical, Double-Sided
Voltage
600 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983596614
GTiN
00074983596614
Product UPC
07498359661

Dimensions

Height
2.13 Inch
Overall Length
2.97 in
Width
2.63 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
USA
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
