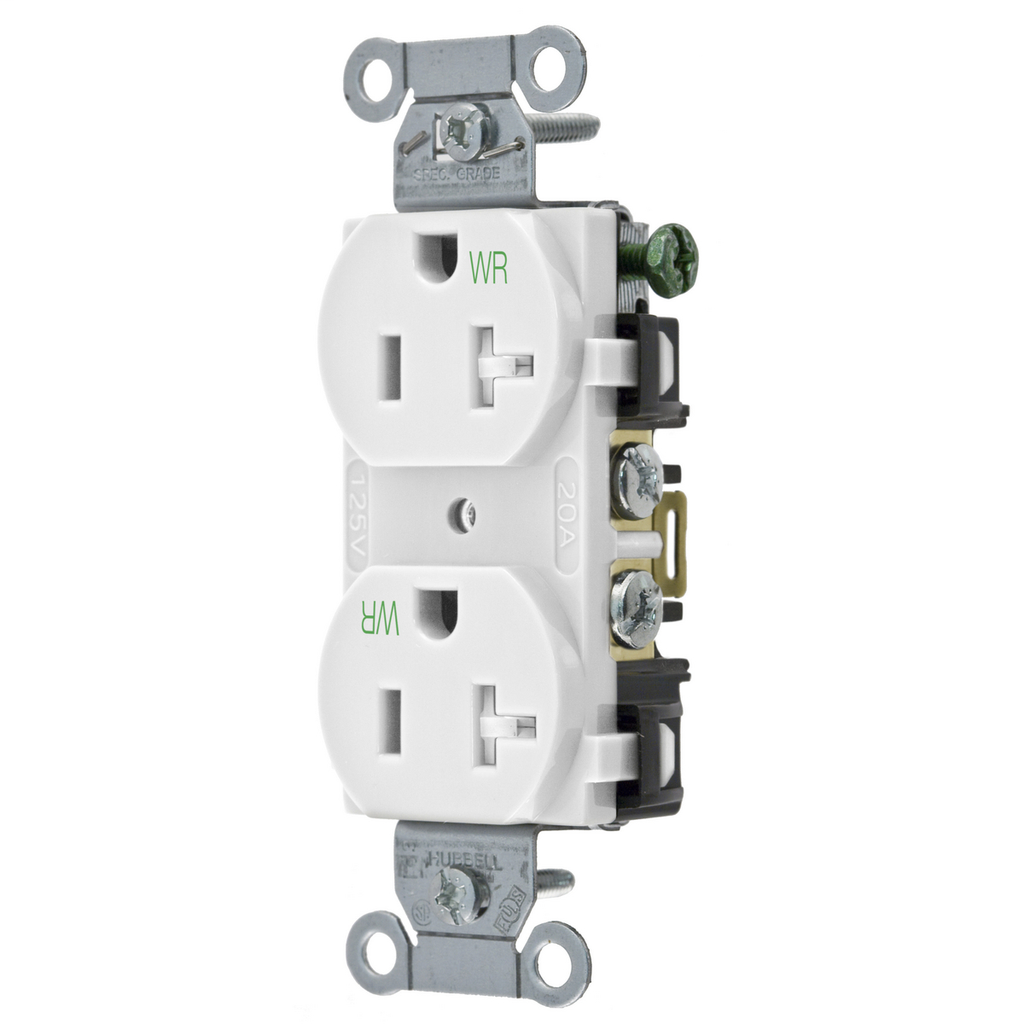

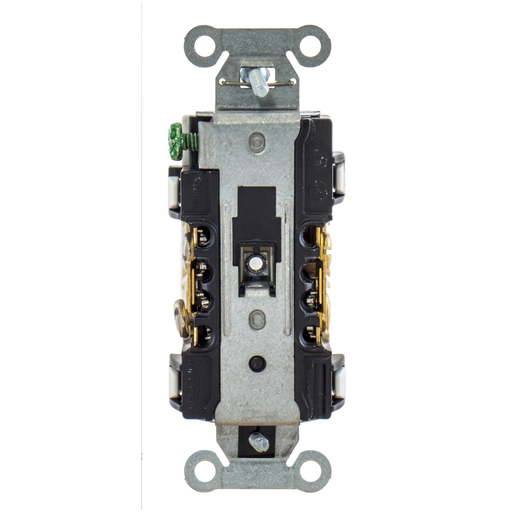

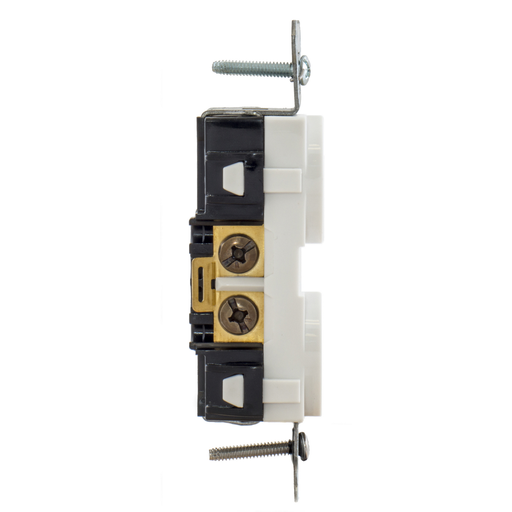

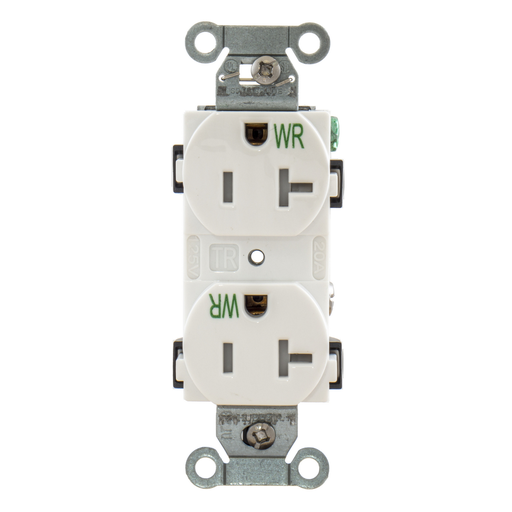

Hubbell Wiring Devices BR20WHIWRTR 125 Volt 20 Amp NEMA 5-20R White Commercial Grade Weather/Tamper Duplex Receptacle

Manufacturer: Hubbell / Kellems | Catalog # BR20WHIWRTR | North Coast Part # 599638
$8.19/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Specification Sheet Product Catalog Page Installation Instructions
Straight Blade Devices, Receptacles, Tamper and Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Commercial Specification
Grounding
Self
Material
Nylon
Mounting Type
Screw, Recessed/Flush
Number of Poles
2 Pole
Number of Wires
3
Size
Standard Sized Product
Standard
CSA C22.2,NEMA WD-6,No. 42,UL,UL498 File No. E2186
TC Connection
Back and Side Wired
Type
Traditional, Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, Weather-Resistant
GTiN
00783585144726
Product Series
Commercial Specification Grade
Product UPC
78358514472
Weight
0.2 lb

Dimensions

Height
1 Inch
Length
4.2 Inch
Width
1.500 in

Certifications and Compliance

Country of Origin
China
  • Tamper and Weather Resistant- Self Grounding
  • Triple wipe contacts
  • Wrap-around galvanized steel strap
  • Weather-resistance complies with national electrical code requirements
  • Smooth face
  • Tamper-resistant shutter complies with national electrical code requirements
