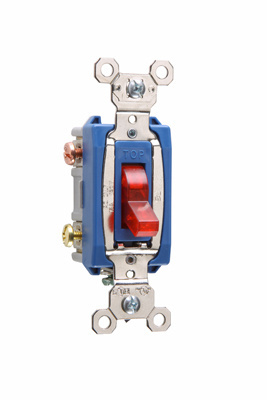

Pass & Seymour PS15AC3-RPL 15 Amp 120 VAC 3-Way Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # PS15AC3RPL | North Coast Part # 600120

$45.24/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
3way Pilot Lighted Switch, Back & Side Wire, 15A 120VAC, Clear

Technical Information

Amperage
15 Amp
Applications
Industrial
Contact Rating
15amp, 120/277vac
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
3 Pole
Size
3.3"
Type
Pilot Lighted
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007195828
Product UPC
78500719582
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • Shallow design for ease of installation.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Heavy-duty bumper pads for quiet operation.
  • For covering patents, see www.legrand.us/patents.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Strap nickel-plated steel with integral ground.
  • Grounding terminal is standard.
  • Back body made of glass-reinforced nylon.
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Auto-ground clip assures positive ground.
  • Locking support provides resistance to face and back body separation.
  • High strength thermoplastic polycarbonate toggle.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
