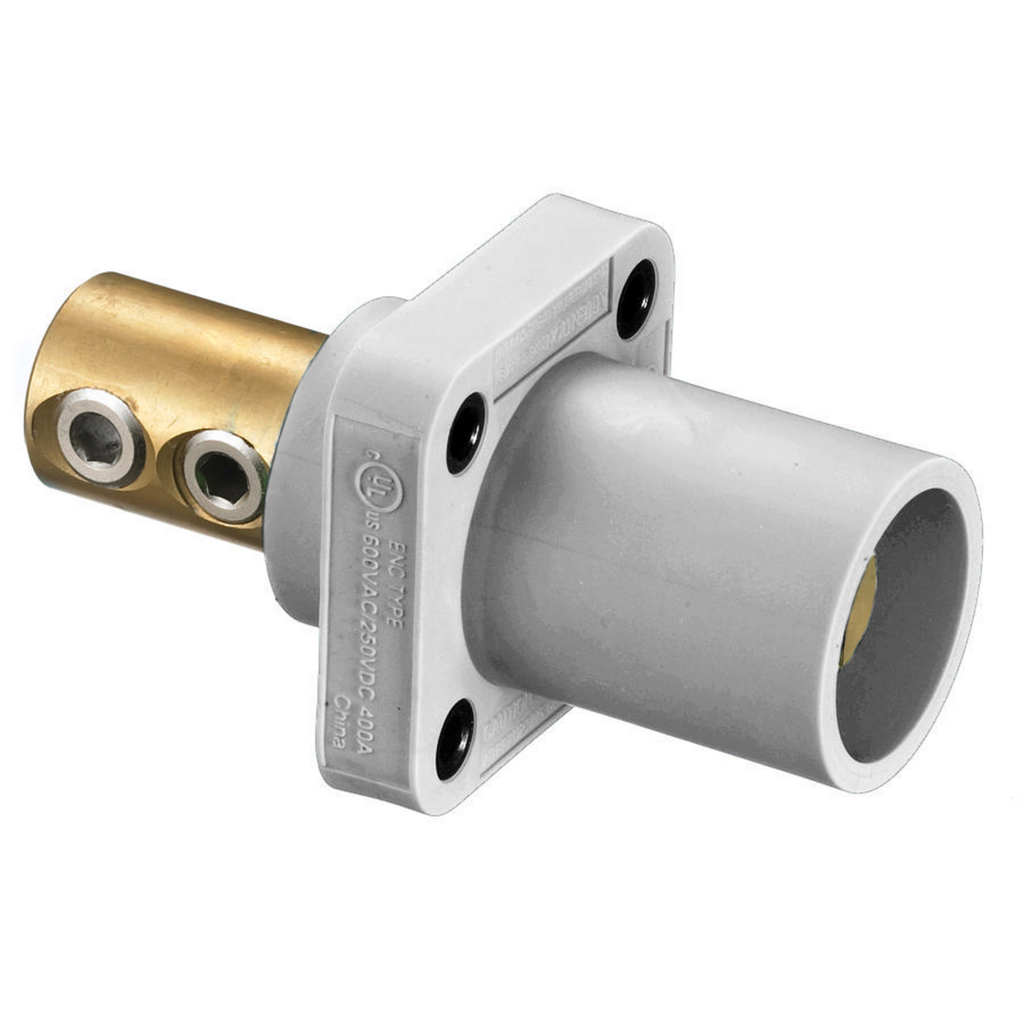

Hubbell HBLMRW 400 Amp 1-Pole White Double Set Screw Male Cam Type Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBLMRW | North Coast Part # 601667
$89.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Receptacle, 300/400A 600V AC/DC, Single Conductor, Set Screw, White

Technical Information

Amperage
400 Amp
Applications
For High Ampacity Connections
Conductor Size
4-4/0 AWG
Connection Type
Set Screw
Current
400 Amp
Material
Thermoplastic
Number of Phases
1 Phase
Number of Poles
1-1 Pole
Size
Standard Sized Product
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Double Set Screw Male
TC Connection
Terminal Screws
Type
Flanged Single, Standard
Voltage
600 VAC, 250 VDC
Wattage
240000 Watt
Wire Size
4-0000 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Single Pin Male

General Product Info

12-Digit UPC
783585113074
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585113074
Product Series
Series 16
Product UPC
78358511307

Dimensions

Height
5.2 Inch
Length
5.9 Inch
Width
2.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Industrial Grade
  • Male
  • Receptacle
  • Standard Product
