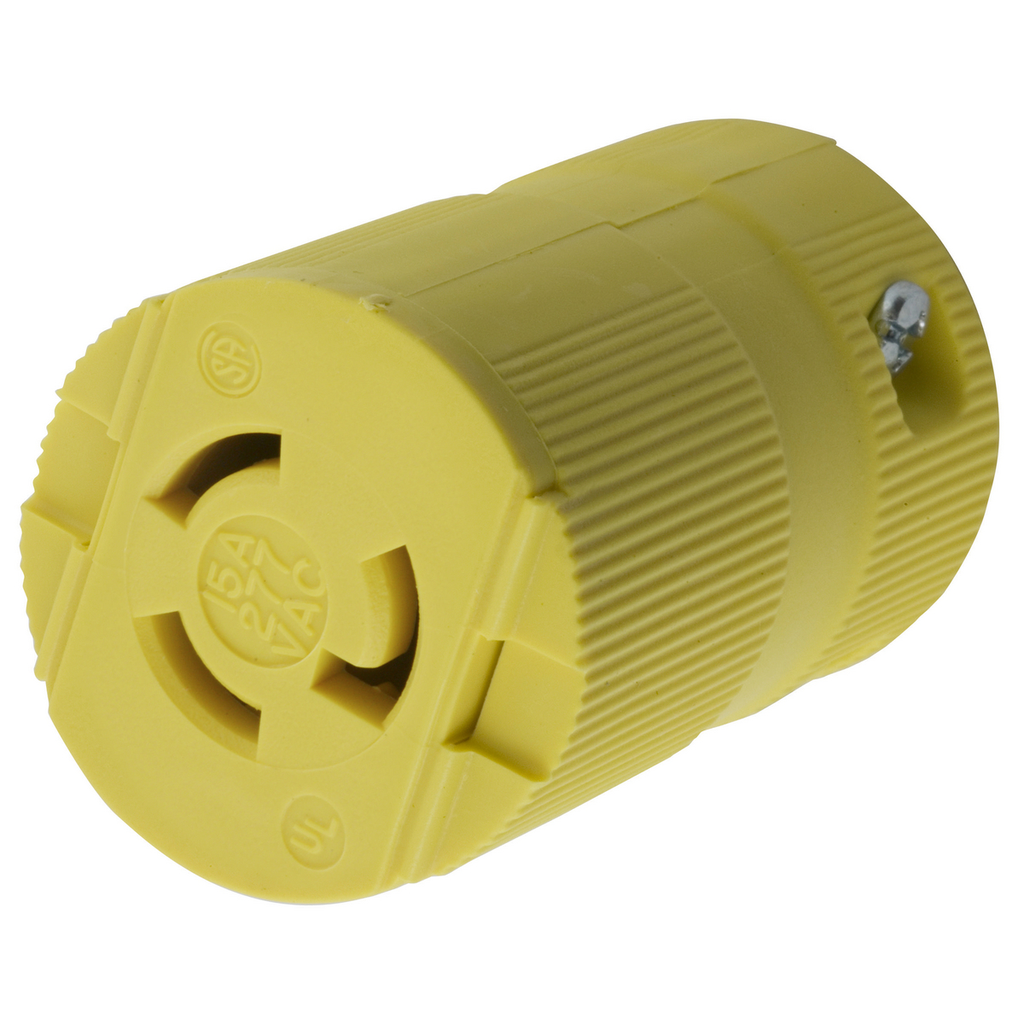

Hubbell Wiring Devices HBL4779VY 15 Amp 277 VAC NEMA L7-15R Yellow Nylon Locking Connector

Manufacturer: Hubbell / Kellems | Catalog # HBL4779VY | North Coast Part # 602710
$45.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Applications
Conductor Size
18-10 AWG
Contact Material
Brass
Cord Size
0.35 - 1.15 in
Current
15 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Nylon
Mounting Type
Cord

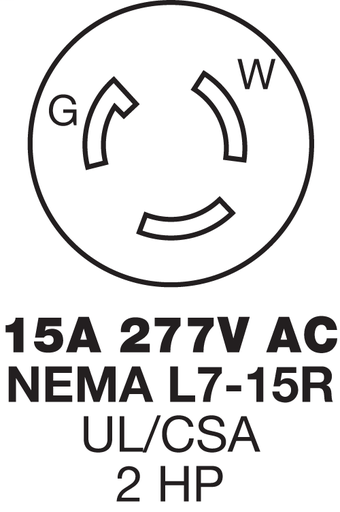

NEMA
L7-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Valise
Voltage
277 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585236964
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585236964
Product UPC
78358523696
Weight
0.15 lb

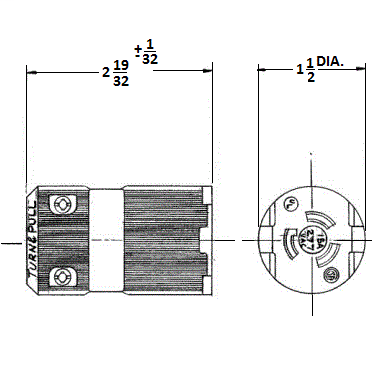

Dimensions

Height
2.78 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
