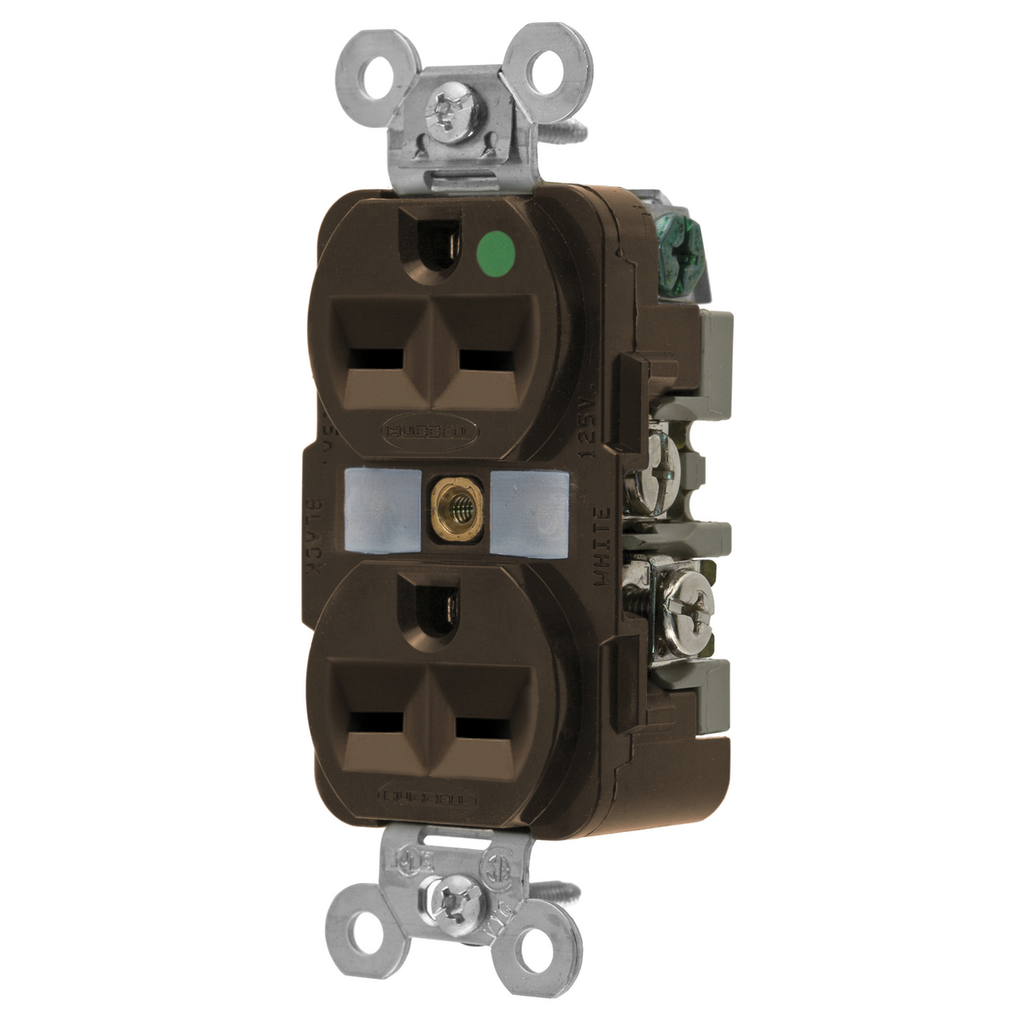

Product image for Hubbell HBL8600DUP Receptacle, HG, 15A 250V, 6-15R, BR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL8600DUP Receptacle, HG, 15A 250V, 6-15R, BR

Manufacturer: Hubbell / Kellems | Catalog # HBL8600 | North Coast Part # 60305
$73.14/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty, Hospitals
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT
Grade
Hospital
Grounding
Grounding
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back and Side Wired Terminal Screws
Type
Extra Heavy Duty
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
14-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585435848
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585435848
Product Series
HBL Extra Heavy Duty Hospital Grade
Product UPC
78358543584
Weight
0.25 lb

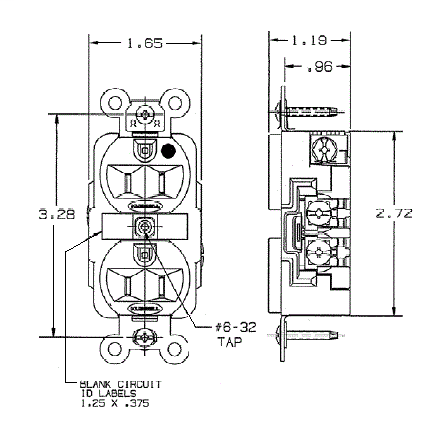

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Deep body design with circuit ID face
  • Patented ground contact provides redundant grounding
  • Self Grounding
