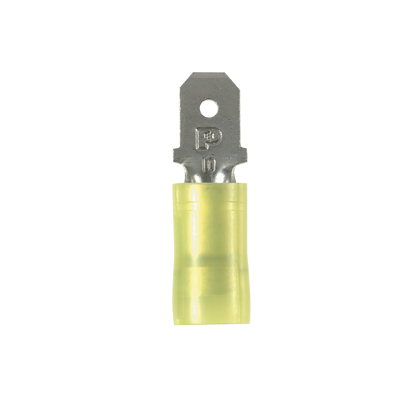

Panduit DNF10-250M-L Nylon Barrel Insulated Male Disconnect

Manufacturer: Panduit | Catalog # DNF10-250M-L | North Coast Part # 604697
$143.89/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Out of stock, call for availability
Specification Sheet Product Catalog Page
The vibration resistant male tab disconnect is made of base metal copper and is nickel-plated. It is barrel insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm). It is 1.03" (26.2 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Yellow
Material
Copper
Max Operating Temperature
221 degrees F
TC Connection
Standard
Temperature Rating
221 F
Type
Loose Piece Disconnect
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Term

General Product Info

Color
Yellow
Finish
Nickel
GTiN
00074983827718
Product UPC
07498382771
UNSPSC
39121409

Dimensions

Height
0.03 Inch
Overall Length
1.03 in
Width
0.25 in

Certifications and Compliance

Country of Origin
MX
