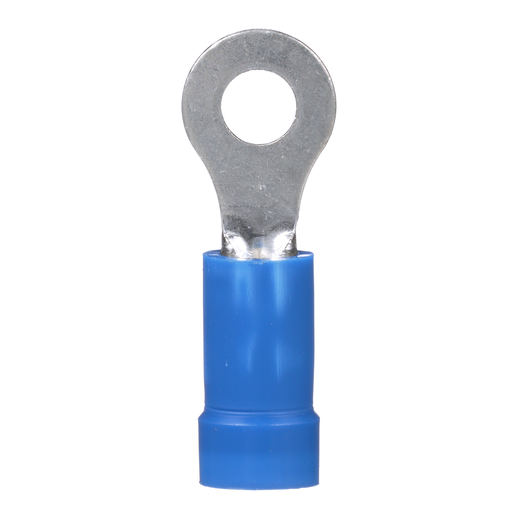

Panduit PV14-6R-M 16-14 AWG Vinyl Insulated Ring Terminal

Manufacturer: Panduit | Catalog # PV14-6R-M | North Coast Part # 604772
$422.38/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The PV14-6R-M Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.46 in
Barrel Type
Funnel
Color Coding
Blue
Conductor Size
14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#6
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801176
Color
Blue
Finish
Tin Plated
GTiN
00074983801176
Product UPC
07498380117

Dimensions

Overall Length
0.92 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
