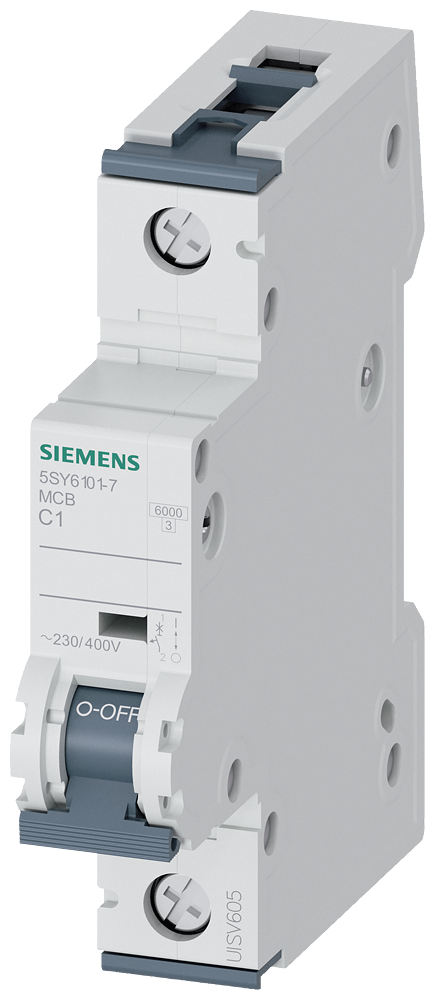

Product image for Siemens 5SY6101-7 1-Pole 1 Amp 230/400 VAC 6 kA Curve C Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

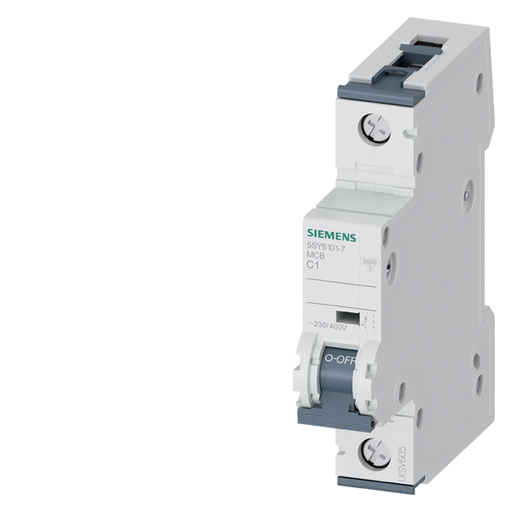

Siemens 5SY6101-7 1-Pole 1 Amp 230/400 VAC 6 kA Curve C Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY6101-7 | North Coast Part # 605144
$46.48/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY6 Miniature Circuit Breaker, 1 Pole, 480/277V, 1A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
1 Amp
Applications
For Supplementary Protection
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
1 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
35 mm DIN Rail
Number of Poles
1 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
EN 60 898,IEC,UL 1077,CE,CSA 22.2 NO. 235,EN 60 947-2
TC Connection
Identical wire screw connections on line and load side.
Trip Type
Class C
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
754554921495
Class
C
GTiN
00754554921495
Product UPC
75455492149
Weight
0.340 lb

Dimensions

Height
2.95 Inch
Length
1 Inch
Width
2.500 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.017 kg
Green End-of-Life CO2
0.167 kg
Green Manufacturing CO2
0.683 kg
Green Total CO2
8.52 kg
Green Transport-to-DC CO2
0.03 kg
Green Use-Phase CO2
7.623 kg
