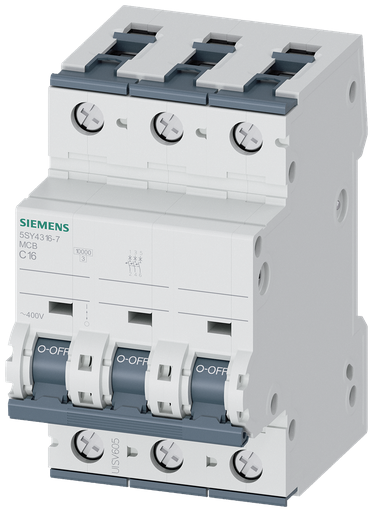

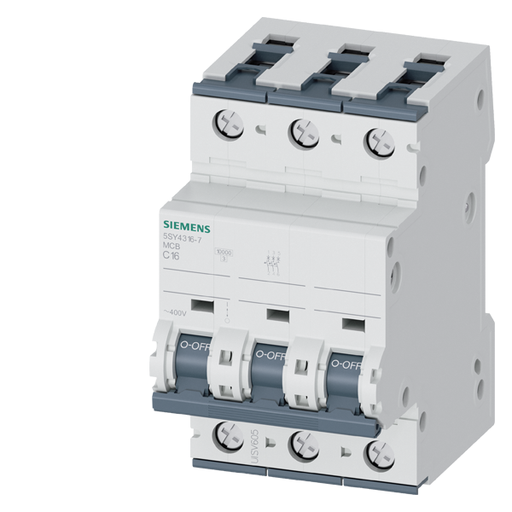

Product image for Siemens 5SY4316-7 3-Pole 16 Amp 400 VAC 10 kA Curve C Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY4316-7 3-Pole 16 Amp 400 VAC 10 kA Curve C Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4316-7 | North Coast Part # 605249
$152.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
WP-switch -3POL/16A/C_-25/+45GRD

Technical Information

Amperage
16 Amp
Applications
For Supplemental Protection
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
16 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
35 mm DIN Rail
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA,E2186,UL
TC Connection
Identical wire screw connections on line and load side.
Trip Type
C-Curve, Thermal Magnetic
Type
5SY4
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
754554862446
Class
C
GTiN
00754554862446
Product UPC
75455486244
Weight
0.920 lb

Dimensions

Height
2.95 Inch
Length
3-1/2 Inch
Width
2.050 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.04 kg
Green End-of-Life CO2
0.485 kg
Green Manufacturing CO2
1.53 kg
Green Total CO2
32.9 kg
Green Transport-to-DC CO2
0.353 kg
Green Use-Phase CO2
30.492 kg
