LEV M5362-R 5-20R LEV LOK IND GRD R

Manufacturer: Leviton | Catalog # M5362-R | North Coast Part # 606015

$29.47/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Order by Sunday 4:00pm PT for delivery Monday
Out of stock, call for availability

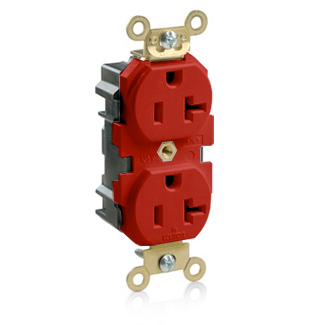

20-Amp, 125-Volt, Wide Body Duplex Receptacle, Industrial Grade, Straight Blade, Self Grounding, Red

Technical Information

Amperage
20 Amp
Applications
Commercial
Base Material
Nylon
Connection Type
Modular Terminal
Cover Material
Nylon
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Flamability Class
Rated V-2 Per UL94
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-20R,WD-1,WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3
Operating Temperature
-40 C
Size
46 H x 1.53 W x 1.22 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 To 60 C
Temperature Rise
200 %
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Family Brand Name
Leviton
Sub Brand
Lev-Lok

General Product Info

Color
Red
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477362983
Product UPC
07847736298

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
