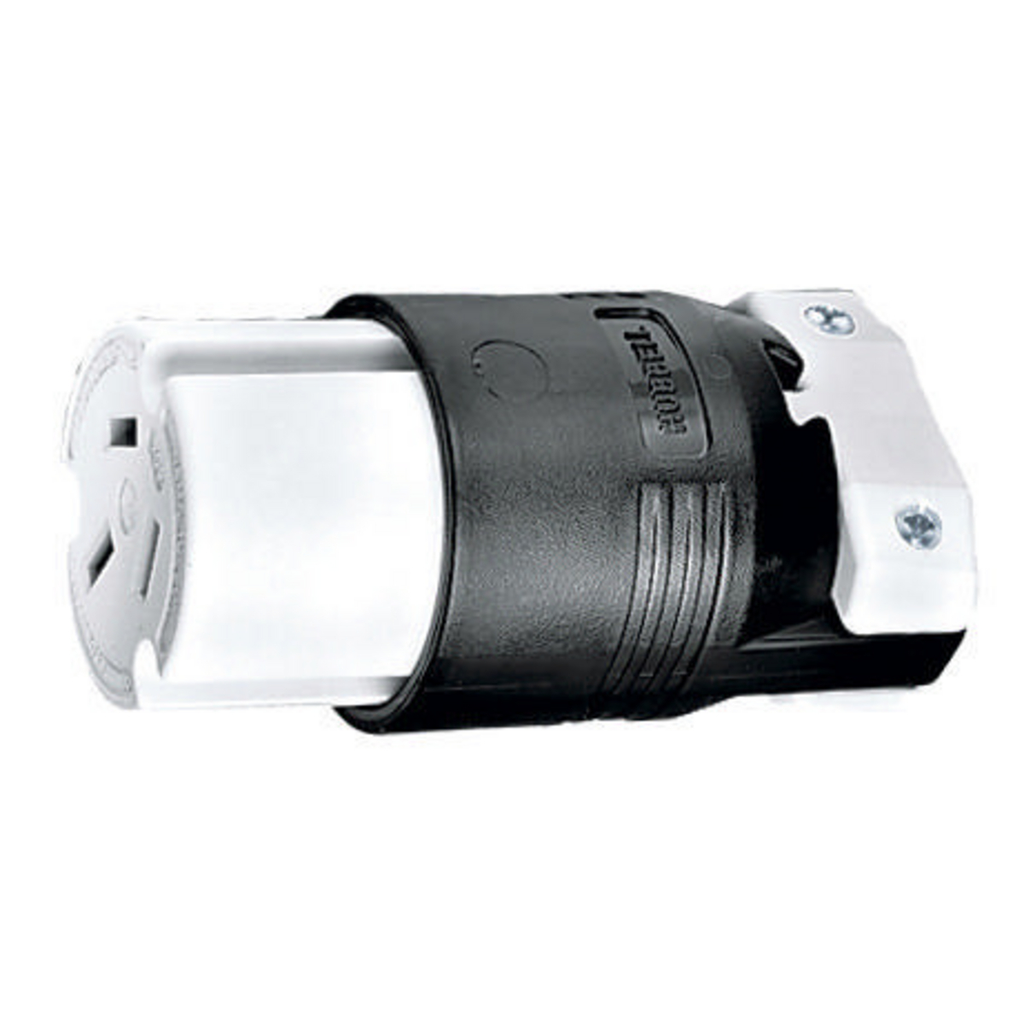

Hubbell HBL7515C 50 Amp 125/250 Volt 3-Pole 3-Wire NEMA 10-50R Black Straight Blade Connector

Manufacturer: Hubbell / Kellems | Catalog # HBL7515C | North Coast Part # 60739
$231.91/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50R, Black, Single Pack.

Technical Information

Amperage
50 Amp
Applications
Industrial/Commercial
Conductor Size
10 AWG
Connection Type
Screw Terminal
Current
50 Amp
Horsepower
3 hp
Material
Composite
NEMA
10-50R
Number of Conductors
3
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E1706,UL
TC Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C without Impact
Type
Standard
Voltage
125/250 Volt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585015118
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585015118
Product UPC
78358501511
Weight
1 lb

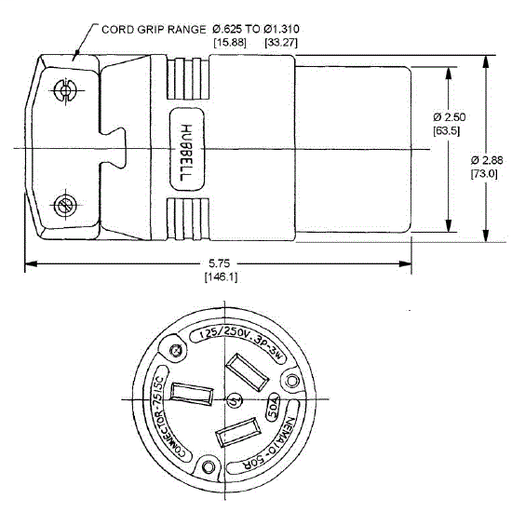

Dimensions

Height
2.88 Inch
Length
5-3/4 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
  • Standard Product
