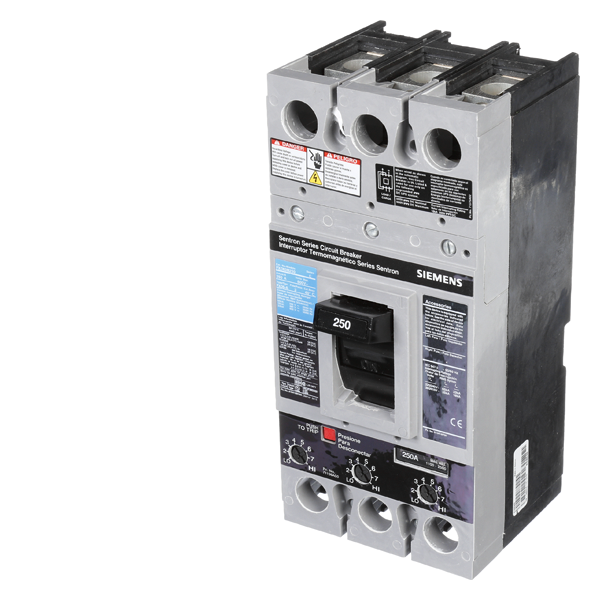

Product image for Siemens FXD63B250L 3-Pole 250 Amp 600 VAC 22 kA ETI Circuit Breaker
Image thumbnail 0
Image thumbnail 1

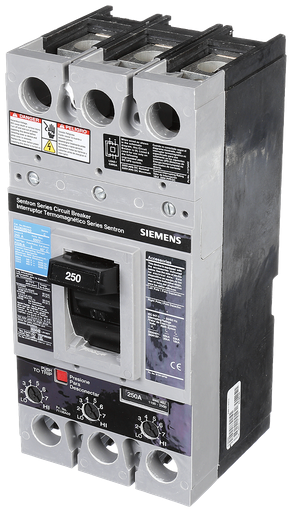

Image thumbnail 2
Image thumbnail 3
Email

Siemens FXD63B250L 3-Pole 250 Amp 600 VAC 22 kA ETI Circuit Breaker

Manufacturer: Siemens | Catalog # FXD63B250L | North Coast Part # 609494
$4,734.70/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 250A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN: 4.50 x 9.5 x 4.00.

Technical Information

Actuator
Varying
Amperage
250 Amp
Applications
Standard 40C Breaker
Connection Type
Line/Load Lugs Installed
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
Line/Load lugs installed
Trip Range
1100-2500
Trip Type
Thermal-Magnetic
Type
FXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643006126
GTiN
00783643006126
Product UPC
78364300612
Weight
9.250 lb

Dimensions

Height
6.95 Inch
Length
20.35 Inch
Width
7.050 in

Certifications and Compliance

Country of Origin
Mexico
