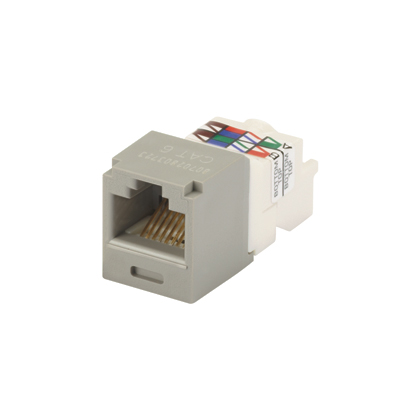

Product image for Panduit CJ688TPIG Cat 6 UTP 8-Position 8-Wire Mini-Com Module
Image thumbnail 0
Image thumbnail 1
Email

Panduit CJ688TPIG Cat 6 UTP 8-Position 8-Wire Mini-Com Module

Manufacturer: Panduit | Catalog # CJ688TPIG | North Coast Part # 611013
$30.24/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Installation / Instruction Manual
The Mini-Com® Cat 6 UTP RJ45 TP Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Performance Level
Category 6
Type
Keystone, 8-Wire, 1-Slot

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983992775
Color
Light Gray
GTiN
00074983992775
Product UPC
07498399277
UNSPSC
43223301

Dimensions

Depth
1.43 Inch
Height
0.63 Inch
Overall Length
1.43 in
Width
16 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
