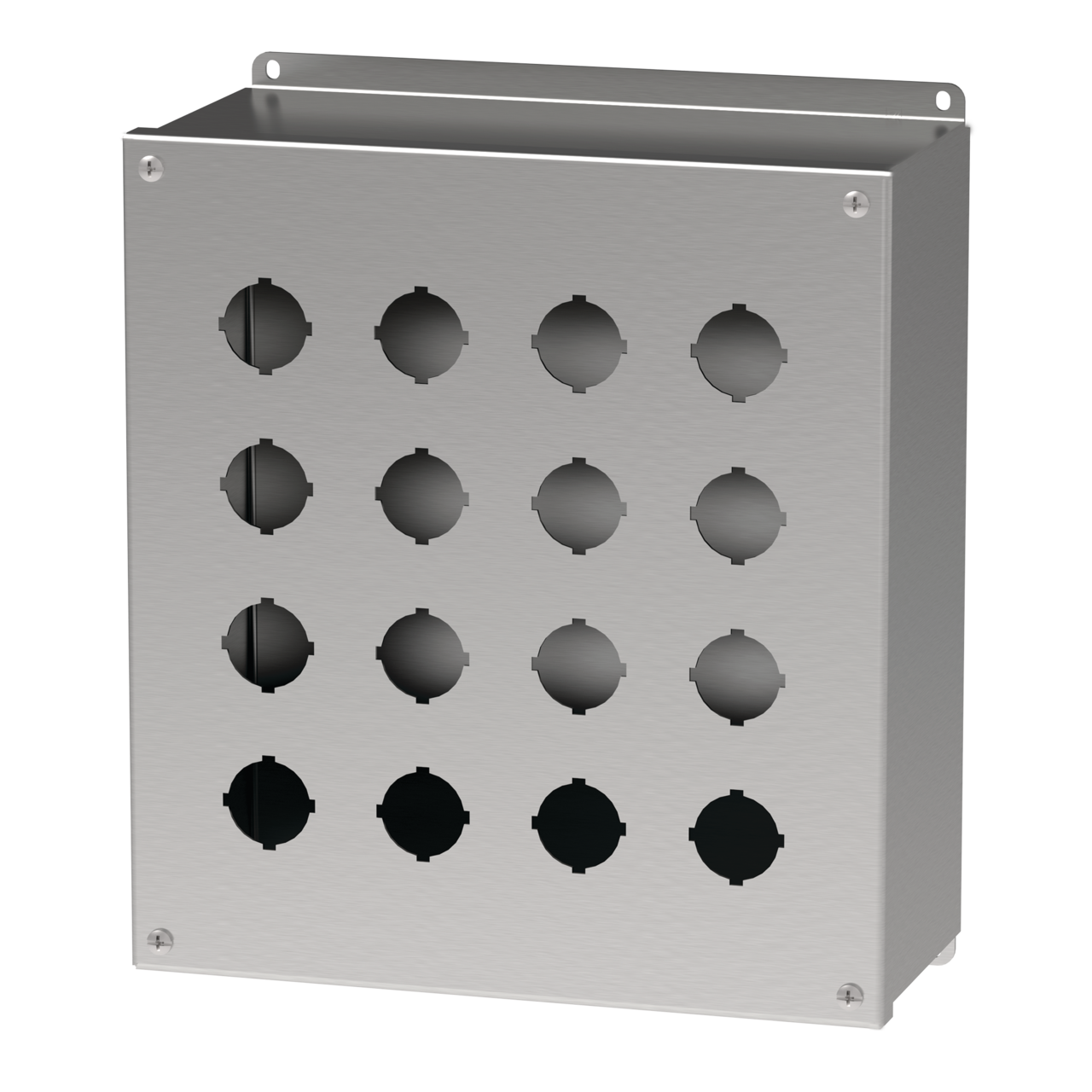

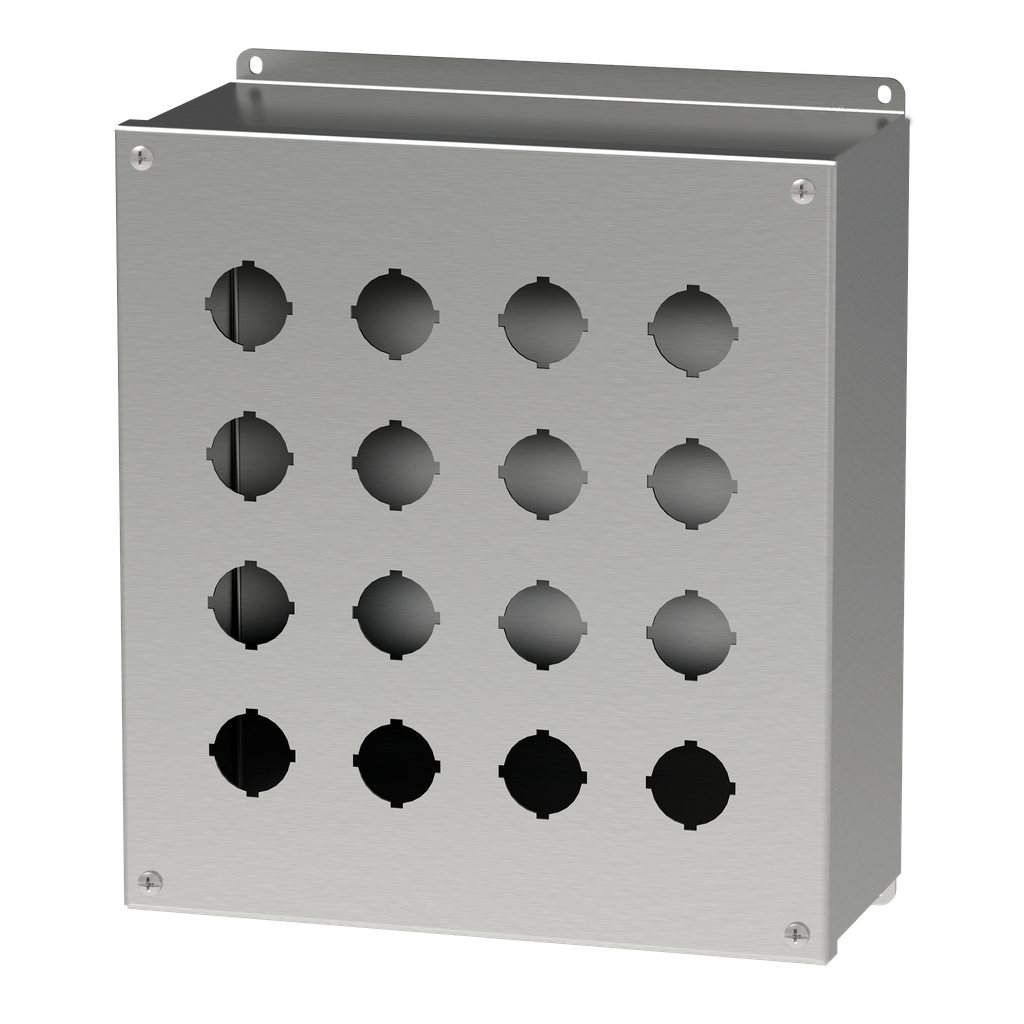

Product image for Hoffman E16PBXSS Extra-Deep 30.5-mm Pushbutton Enclosures, Type 4X, 16PB x 30.5mm, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman E16PBXSS Extra-Deep 30.5-mm Pushbutton Enclosures, Type 4X, 16PB x 30.5mm, SS Type 304

Manufacturer: nVent Hoffman | Catalog # E16PBXSS | North Coast Part # 611931
$1,577.27/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Designed to house 30.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons. See Mild Steel chapter for related mild steel enclosures.

Technical Information

Applications
Controls and Drives; Corrosive Environments; Hygienic Environments
Gauge
14 AWG
Material
Stainless Steel
Number of Holes
16 Hole
Size
16PB x 30.5mm
Standard
12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Type
16-Hole

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510596002
Color
Unpainted
Finish
Brushed
GTiN
00783510596002
Product UPC
78351059600
Weight
9.9 lb

Dimensions

Depth
121 mm
Height
298 mm
Length
12-3/4 Inch
Thickness
1.9 mm
Width
273 mm
Features
  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door; grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket
