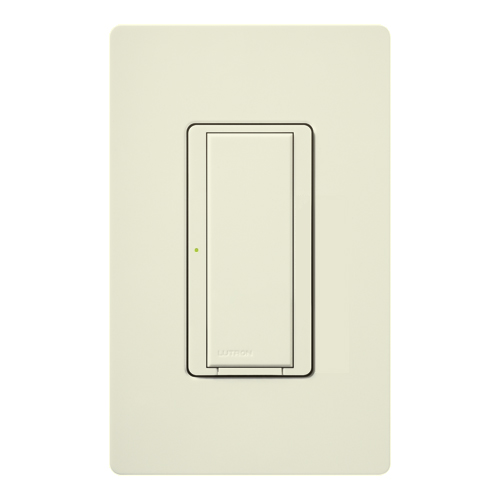

Product image for Lutron RRD-8ANS-BI RADIORA2 8AMP NEUTR
Email

Lutron RRD-8ANS-BI RADIORA2 8AMP NEUTR

Manufacturer: Lutron | Catalog # RRD-8ANS-BI | North Coast Part # 612789
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads. Neutral wire required. Tap switch on/off.

Technical Information

Actuator
Tapswitch
Amperage
5.8 Amp
Applications
Lighting
Connection Type
Screwed Terminal
Contact Configuration
N-O
Contact Rating
5.8 A
Enclosure
Plastic
Enclosure Material
Plastic
Insulation Material
Plastic
Material
Metal;Plastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Size
75 in
Standard
ANATEL,COFETEL,CSA,FCC,IC,NOM,UL
TC Connection
Screw terminal
Type
Multi-location/single-pole,Wireless Electronic Switch
Voltage
120 Volt
Wattage
696 Watt

Manufacturer Information

Brand
RadioRA 2
Sub Brand
RadioRA 2

General Product Info

12-Digit UPC
027557771580
Color
Biscuit
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Satin
GTiN
00027557771580
Product UPC
02755777158

Certifications and Compliance

Country of Origin
Mexico
Standards and Certifications
  • UL
  • CSA
  • NOM
  • FCC
  • IC
  • COFETEL
  • ANATEL
Features
  • RadioRA 2 Maestro local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system.
  • RadioRA 2 Maestro local controls include a Front Accessible Service Switch (FASS) for lamp replacement. RadioRA 2 Maestro local controls install in single pole or multi-locations. Remote dimmers / switches available for multi-location control.
  • Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general purpose fans and motor loads
  • Neutral wire required
  • Tap switch on/off.
