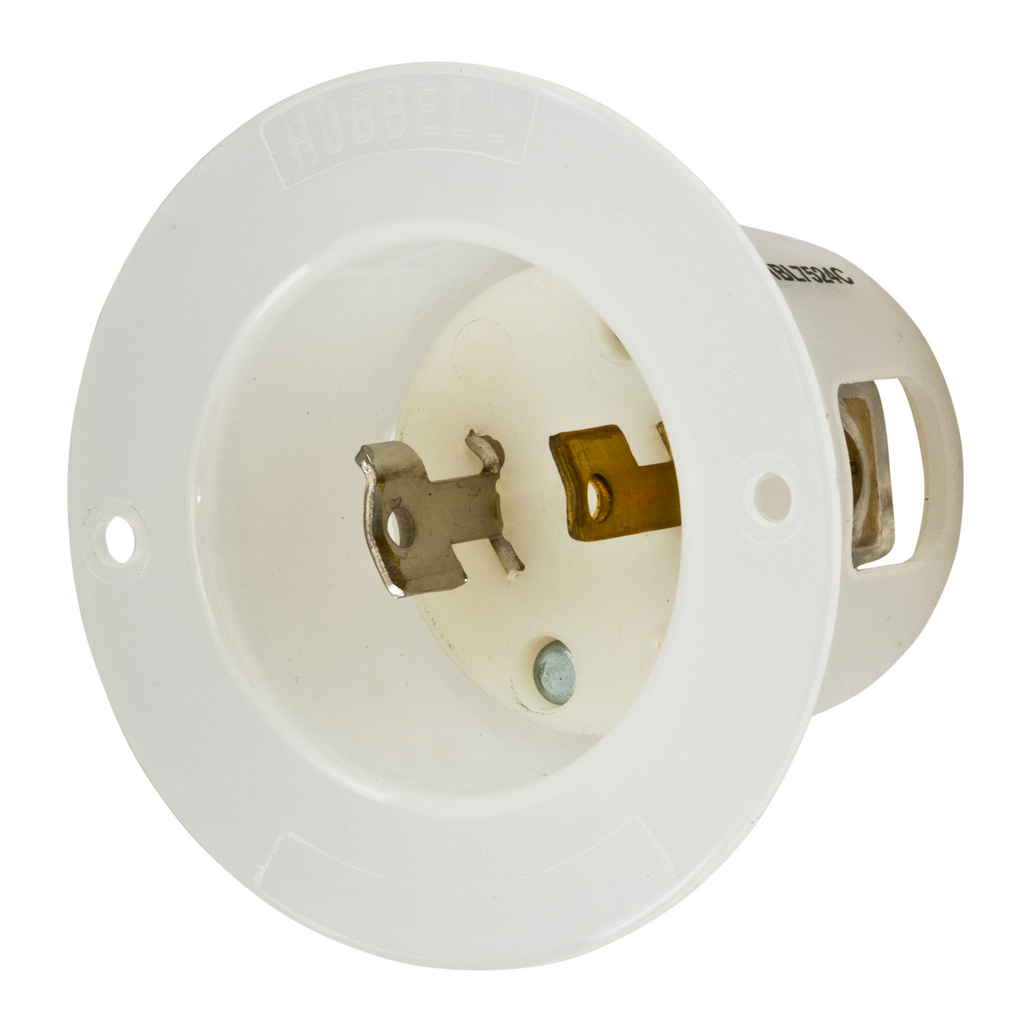

Hubbell HBL7524C Locking Flanged NLT, 15A 125V, L1-15P

Manufacturer: Hubbell / Kellems | Catalog # HBL7524C | North Coast Part # 61629
$52.39/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual

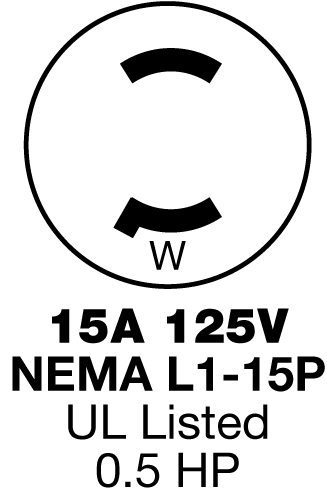

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 125V, 2-Pole 2-Wire Non-Grounding, NEMA L1-15P, Screw Terminal, Nylon casing, Polarized, Backwired, White.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L1-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No. 42,Fed. Spec W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Flanged, Industrial Grade
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
2
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585178004
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585178004
Product UPC
78358517800
Weight
0.10 lb

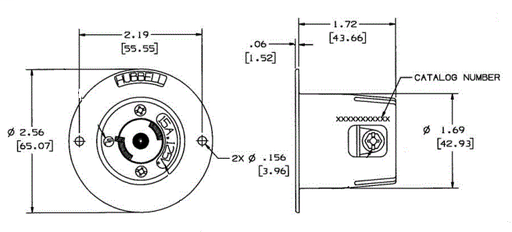

Dimensions

Height
1.72 Inch
Length
2.56 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • Mounting screws included
  • Standard Product
