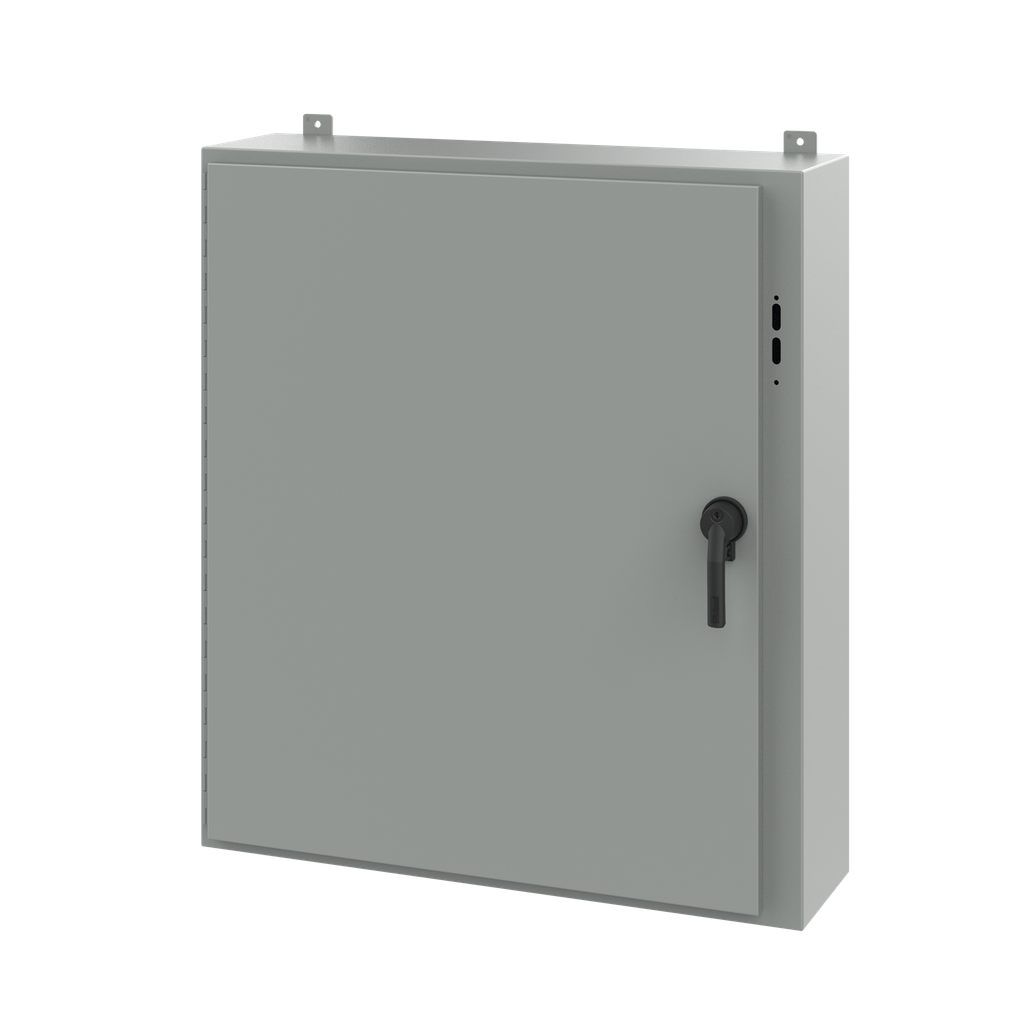

Product image for Hoffman A42SA3810LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 42" x 37.38" x 10", Steel
Email

Hoffman A42SA3810LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 42" x 37.38" x 10", Steel

Manufacturer: nVent Hoffman | Catalog # A42SA3810LPPL | North Coast Part # 616475
$1,908.61/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Technical Information

Applications
For Asset Tracking, Barcode Labeling, Circuit Board ID Through Hole Top, Component and Equipment ID, General and Industrial ID, Laboratory ID Bottle, Tube and Vial, Laboratory ID Eppendorf Tube, Laboratory ID Petri Dish, Panel Labeling; Rating Plates, Voice and Data ID, Nameplate Quality Print and for Performing Well in Autoclave Uses
IP Rating
65
Material
Steel
Size
42.00 37.38x10.00 in
Standard
CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510405090
Finish
Powder Coated
GTiN
00783510405090
Product UPC
78351040509
Weight
119 lb

Dimensions

Depth
10 Inch
Height
42 Inch
Length
46 Inch
Thickness
1.9 mm
Width
37.38 in
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
