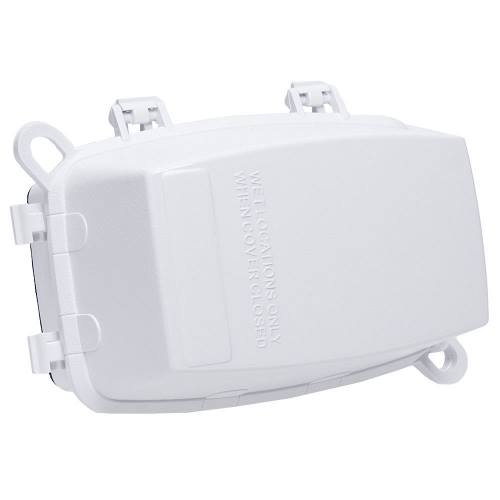

Product image for Intermatic WP1110WC White Plastic Weatherproof Cover
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic WP1110WC White Plastic Weatherproof Cover

Manufacturer: Intermatic | Catalog # WP1110WC | North Coast Part # 619635
$18.70/ea
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Gang Type
Single
Insulation Material
Neoprene Gasket
Material
PolyCarbonate
Mounting Type
Horizontal,Vertical
Number of Module Inserts
3
Number of Outlets
1
Size
3-5/8 DEPTH IN, 92.07 DEPTH MM
Standard
2008 NEC Article 406.8(B)(1),2011 NEC Article 406.9 (B1),UL/CSA Cold Impact Testing
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275087903
Color
White
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
GTiN
00078275087903
Product UPC
07827508790
Shape
Rectangle

Dimensions

Depth
92 mm
Height
146.6 mm
Warranty Length
1 yr
Width
103.1 mm
Features
  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank except WP3100C & WP3103C accept up to 1?8\" (3 mm) dia shank
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited
Applications
  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields
