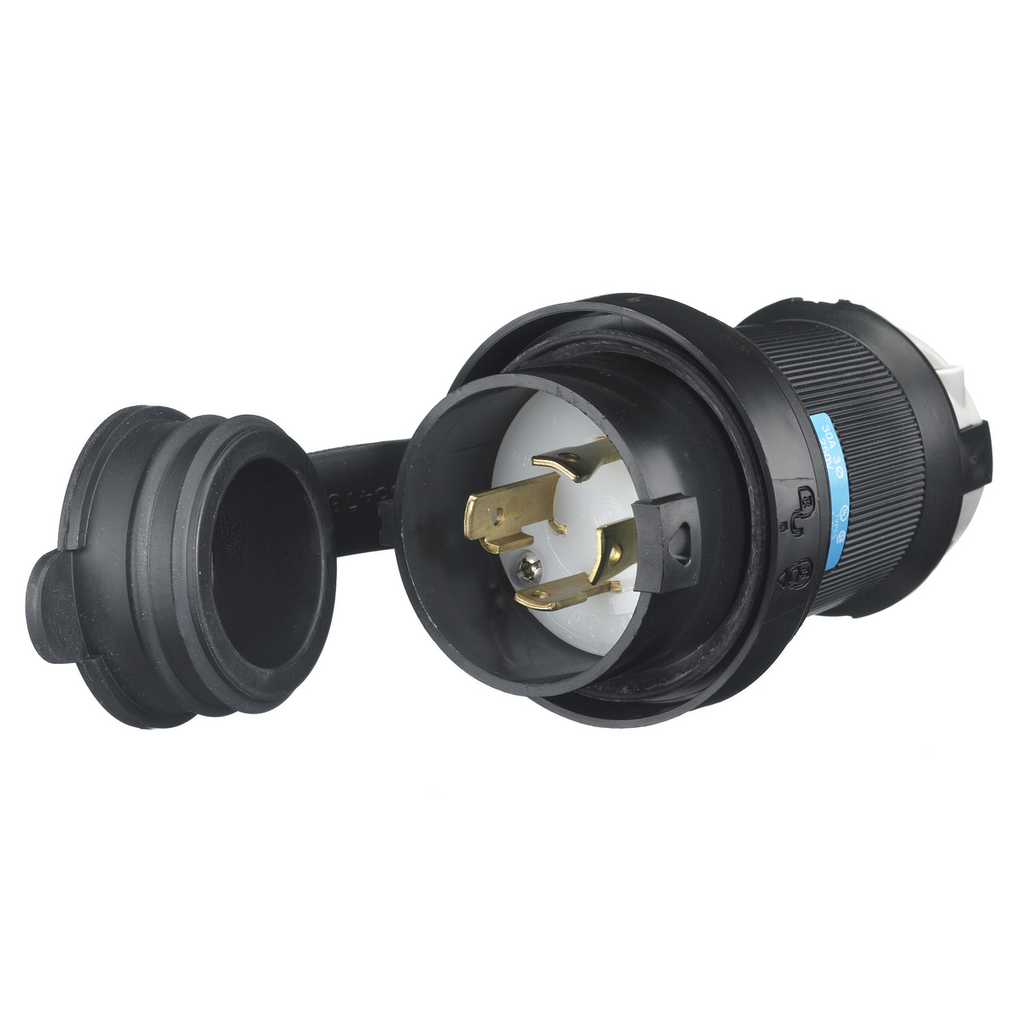

Product image for Hubbell HBL2721-SW 30A 3Ph 250V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Hubbell HBL2721-SW 30A 3Ph 250V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2721SW | North Coast Part # 62267
$280.83/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Black PBT housing, White PBT clamps.

Technical Information

Amperage
30 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
30 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
3 hp
Material
PBT
Mounting Type
Surface, Cord
NEMA
L15-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
2.94 in x 2.94 in x 4.40 in
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Shrouded
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231846
Color
Black,White
Environmental Conditions
Watertight, UL 94 Requirements, V0 Rated Flammability
GTiN
00783585231846
Product UPC
78358523184
Weight
0.65 lb

Dimensions

Height
4.4 Inch
Length
2.94 Inch
Width
2.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Standard Product
