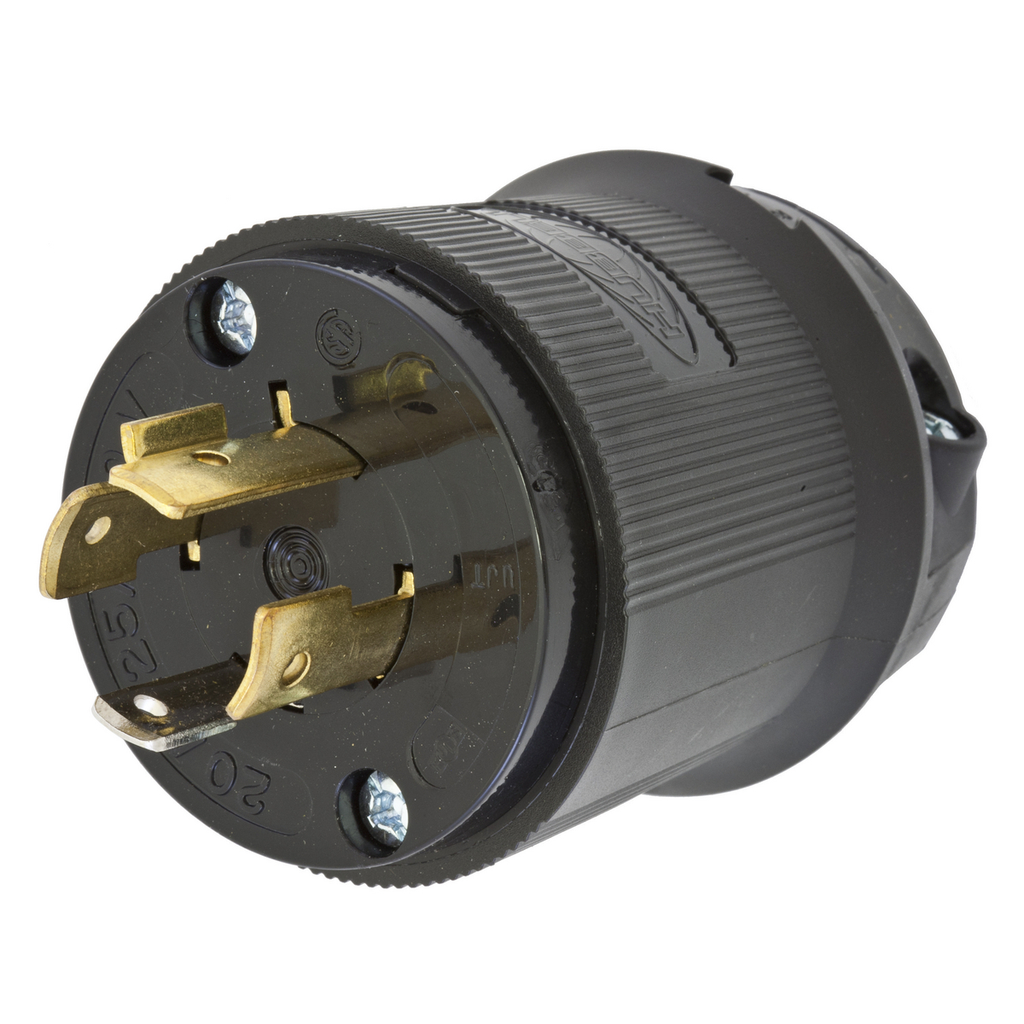

Product image for Hubbell HBL2411BK 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-20P Black Locking Plug
Email

Hubbell HBL2411BK 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-20P Black Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2411BK | North Coast Part # 629815
$75.67/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Insulgrip® Plug, 20A, 125/250V AC, 3-Pole, 4-Wire Grounding, Black

Technical Information

Amperage
20 Amp
Applications
Power Connection
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L14-20P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
2.75 in x 2.33 in x 2.33 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585172309
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585172309
Housing Material
Black Nylon
Product UPC
78358517230
Weight
0.30 lb

Dimensions

Height
2.33 Inch
Length
2-3/4 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product
