Thomas & Betts F9021 10 AWG 6 mm.. Non-Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F9021 | North Coast Part # 63335
$95.82/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

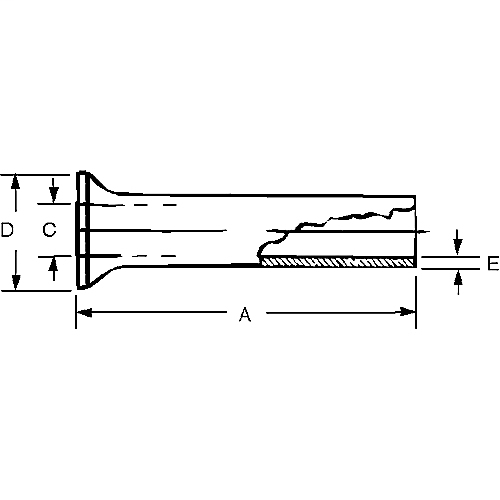

Non-Insulated Ferrule, Length .709 Inches/18mm, Inner Diameter .138 Inches/3.5mm, Outer Diameter .185 Inches/4.7mm, Conductor Size 10 AWG/6mm2, Copper, Tin Plated

Technical Information

Conductor Size
10 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated
Wire Size
10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335995
Color
Metallic
Finish
Tin Plated
GTiN
00786210335995
Product UPC
78621033599

Dimensions

Inside Diameter
0.138 in
Outside Diameter
0.185 in
Overall Length
0.709 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
