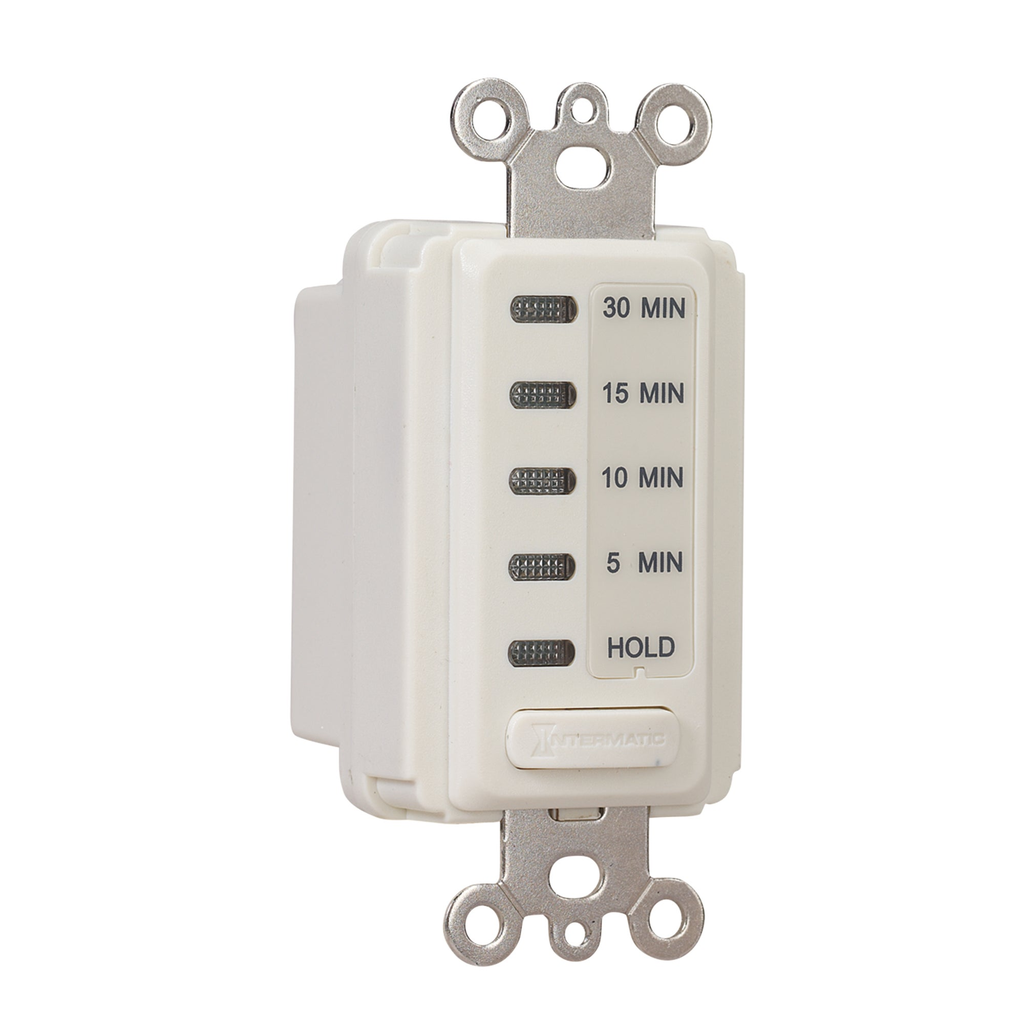

Product image for Intermatic EI200LA 5/10/15/30 Minute 120 VAC 60 Hz 1-Pole Light Almond Electronic Auto-Off Timer with Hold
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

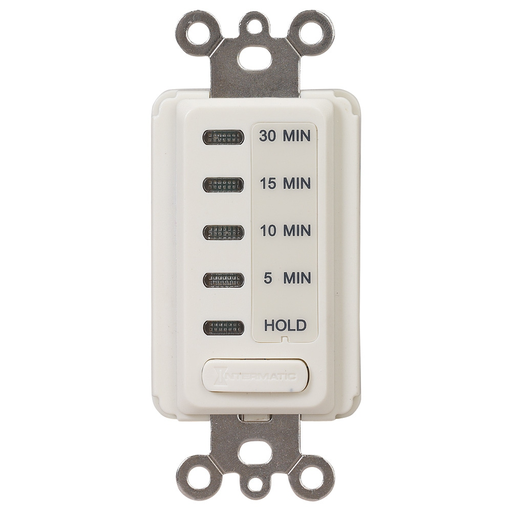

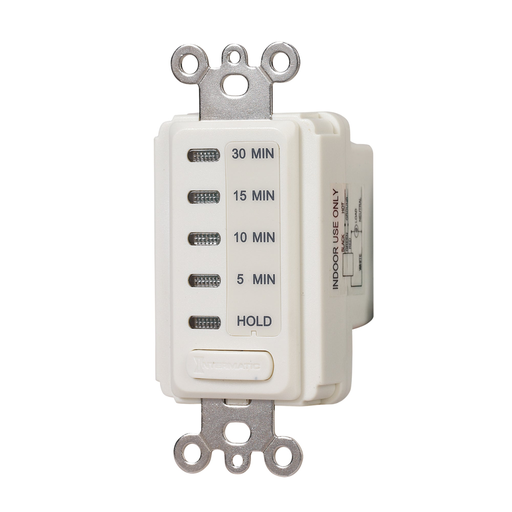

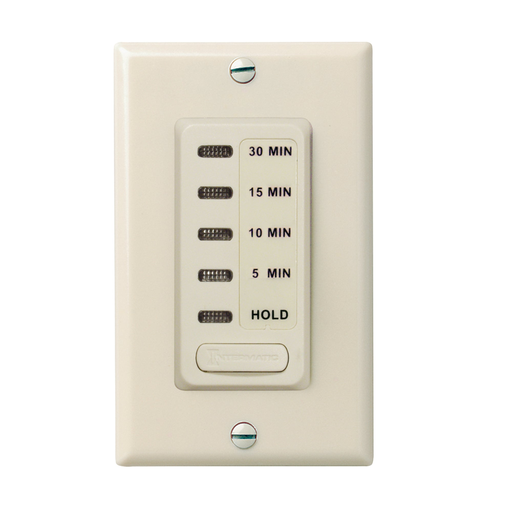

Intermatic EI200LA 5/10/15/30 Minute 120 VAC 60 Hz 1-Pole Light Almond Electronic Auto-Off Timer with Hold

Manufacturer: Intermatic | Catalog # EI200LA | North Coast Part # 63565
$108.98/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Contact Configuration
SPST - 1 NO
Contact Rating
8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 1800 W
Frequency
50/60 Hz
Material
Thermoplastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Standard
CULus Listed,HVACR
Temperature Rating
32 - 122 degrees F
Type
Electronic, Countdown, Auto Shut-Off, 1-Pole
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275100572
Color
Light Almond
GTiN
00078275100572
Product UPC
07827510057
Weight
0.399 lb

Dimensions

Depth
1.438 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.688 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • No programming required
  • Provides silent operation in time ranges from five minutes to 30 minutes
  • Single-button time selection, with some models having a HOLD mode, for continuous ON operation
  • Replaces single-pole switches in a variety of applications
  • Incandescent/fluorescent/CFL/LED compatible
  • For use with decorator-style wall plate (not included)
  • Requires neutral connection
  • NA
