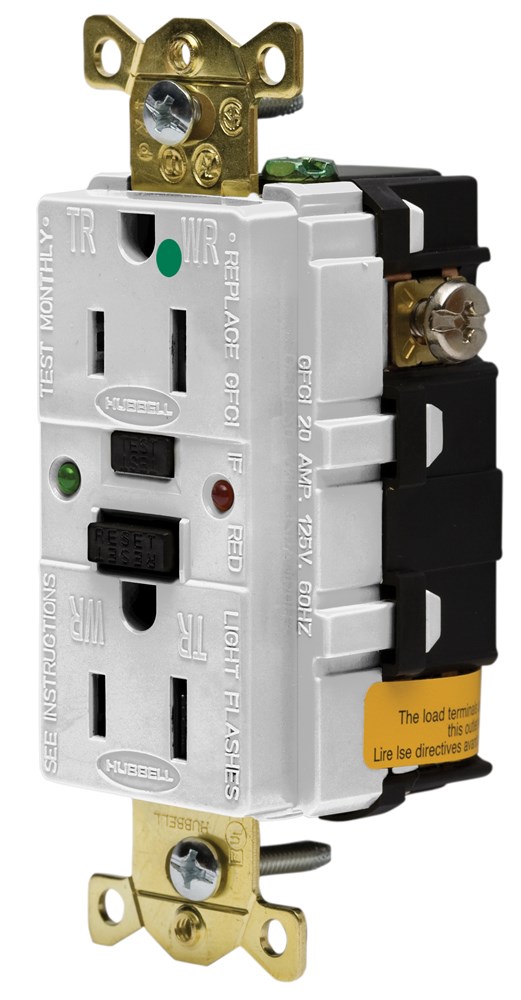

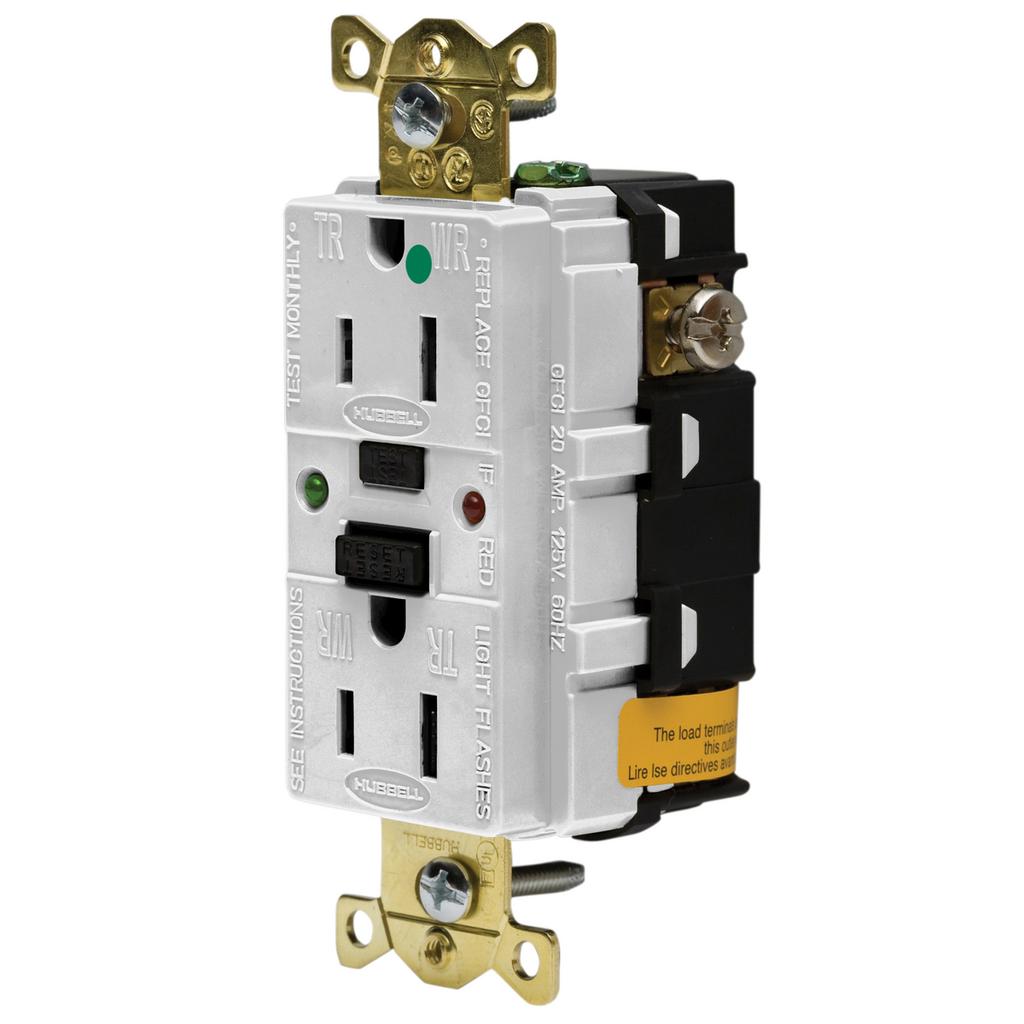

HWDK GFR8200SGW 15A 125V IND HG TAM

Manufacturer: Hubbell / Kellems | Catalog # GFR8200SGW | North Coast Part # 635794
$146.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacle, GFCI, Safety Grade Commercial Hospital Grade, Self Test, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Technical Information

Amperage
15 Amp
Applications
Hospital Grade GFCI Receptacles
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Frequency
60 Hz
Grade
Hospital, Industrial
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-30 To 150 degrees F
Size
Standard
Standard
UL
Style
Standard
TC Connection
Back and Side Wired Terminal Screws
Type
Self-Test, Straight Blade, Tamper-Resistant, Weather Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585441023
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585441023
Product UPC
78358544102
Weight
0.4 lb

Dimensions

Height
2.1 Inch
Length
5 Inch
Width
3.100 in

Certifications and Compliance

Country of Origin
South Korea
Features
  • 10kA Short Circuit Current Rating
  • Limits improper access to energized contacts
  • Self-Testing, Tamper and Weather Resistant, Self Grounding
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
