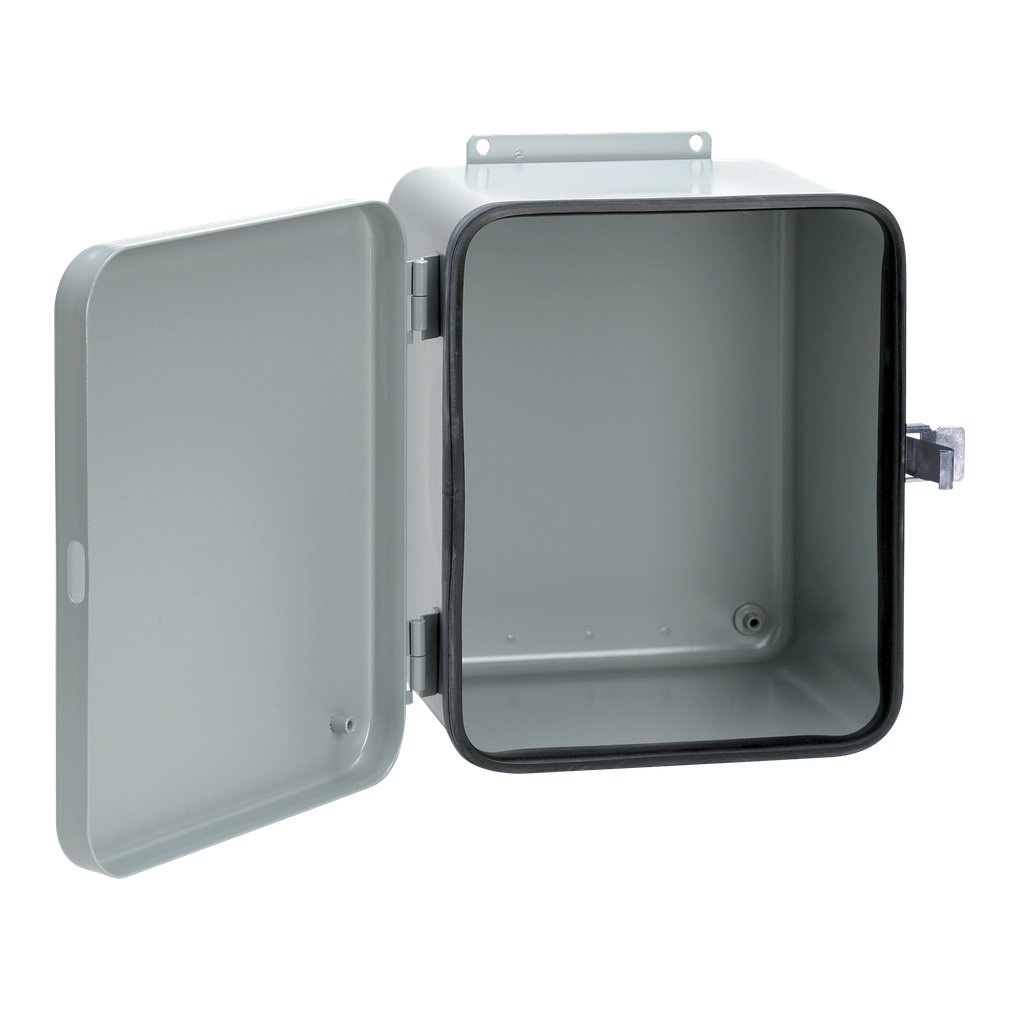

Hoffman A1084DL Removable Hinge with Quick-Release Latch, Contoured, Type 12, 10" x 8" x 4", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A1084DL | North Coast Part # 635858
$233.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Featuring a quick-release latch, mounting brackets, rounded corners and an attractive finish, this enclosure can be used in applications where panel or cover mounting of controls is desired. Ideal for protecting equipment from indoor contaminants.

Technical Information

Applications
Used in Applications where Panel or Cover Mounting of Controls is Desired and for Protecting Equipment from Indoor Contaminants
Color Coding
ANSI 61
Cover Type
Removable, Hinged with Quick-Release Latch
Gauge
16
Material
Steel
Size
10.00x8.00x4.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Contoured

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510600105
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510600105
Product UPC
78351060010
Weight
6 lb

Dimensions

Depth
4 Inch
Height
10 Inch
Length
10.3 Inch
Thickness
1.52 mm
Width
8 in
Features
  • Drawn enclosure
  • No welded seams or sharp corners
  • Removable door with unique lift-off hinges
  • Cover is removable and interchangeable
  • Quick-release latches
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal
  • External wall-mounting brackets for easy installation
  • Bonding provision on door
