Lithonia Lighting IBZ 632 6-Lamp 32 W 120 to 277 Volt T8 Fluorescent High Bay Light Fixture

Manufacturer: Lithonia Lighting | Catalog # IBZ 632 | North Coast Part # 644694
$321.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Lithonia Lighting.s I-BEAM Energy-saving Fluorescent High Bay Fixture is perfect for applications with ceiling heights of 15 to 40 feet. This fixture works well in manufacturing facilities, warehouses and other indoor commercial applications. Quick and easy installation, coupled with high light output, makes the I-Beam the preferred choice for energy-efficient fluorescent high bay lighting.

Technical Information

Aperture Size
4 ft
Applications
Manufacturing,Sports And Recreation,Transportation,Warehouses
Ballast Type
Electronic Ballast
Lamp Type
Fluorescent
Material
Steel
Mounting Type
Suspended
Number of Lamps
6
Type
High Bay
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
745975977390
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
GTiN
00745975977390
Product UPC
74597597739
Shape
Rectangle
Weight
11.875 lb

Dimensions

Height
2-3/8 Inch
Length
48.062 Inch
Warranty Length
1 yr
Width
18.125 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • With IBZ fixtures, the reflectors tightly control the distribution of light and effectively manage lamp heat to increase the overall efficiency
  • Designed to use 6 32-Watt T8 lamps
  • Not a dimmable ballast
  • MVOLT 120-277V ballast accommodates most electrical requirements
  • Suitable for suspension by chain, cable or hook monopointhanger
  • Hours of life based on the lamp used with the fixture
  • Channel is formed of heavy-duty code-gauge steel to stand up to the most demanding elements
  • Emergency battery back-up not included in this version
  • Buy with confidence with a 5-year limited warranty
  • Dimensions length 48.125-in x width 13.25-in x depth2.375-in and weight 15 lbs
  • The I-BEAM IBZ is an energy-saving fluorescent high bay solution that is an ideal one-for-one replacement of common metal halide high bay systems
  • Its configurable design supports many options and accessories that would satisfy almost any high bay application

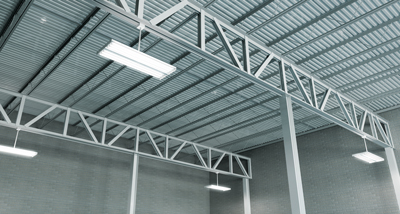

  • Typical applications include manufacturing, warehousing, institutional and retail facilities
  • Certain airborne contaminants can diminish integrity of acrylic
  • Refer to Acrylic Environmental Compatibility tables for suitable uses
Applications
  • Manufacturing
  • Sports and Recreation
  • Transportation
  • Warehouses
Standards
  • CSA
  • UL
