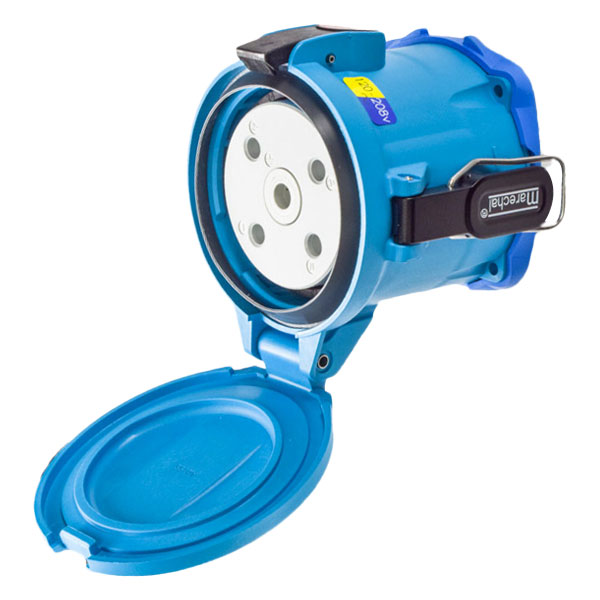

Product image for Meltric 33-94167 DS100 Receptacle, Poly, Blue, Size 5, Type 4X, 3P+N+G, 100A, 120/208 VAC, 60 Hz
Email

Meltric 33-94167 DS100 Receptacle, Poly, Blue, Size 5, Type 4X, 3P+N+G, 100A, 120/208 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 33-94167 | North Coast Part # 645114
$1,260.60/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Receptacle, With Neutral, Ground, Short Circuit Rating 65 KAMP, Application: Metals, Quarry, Automotive and Mining Industries, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 3, Number Of Wires: 5, Wire Size: 4 to 2/0AWG, Amperage Rating: 100A

Technical Information

Amperage
100 Amp
Applications
Metals, Quarry, Automotive and Mining Industries
Conductor Size
4-2/0 AWG
Contact Configuration
3P+N+G
Current
100 Amp
Frequency
60 Hz
Horsepower
10 hp
IP Rating
66,67
Material
Poly
Max Operating Temperature
140 degrees F
Number of Poles
3 Pole
Number of Wires
5 Wire
Short Circuit Current Ratng
150 %
Size
5
Strip Length
1 3/16 in
Type
Receptacle
Voltage
120 Volt
Wire Size
4-00 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474004794
Color
Blue
Environmental Conditions
-40 to 140 F
GTiN
00784474004794
Product Series
4
Product UPC
78447400479

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
