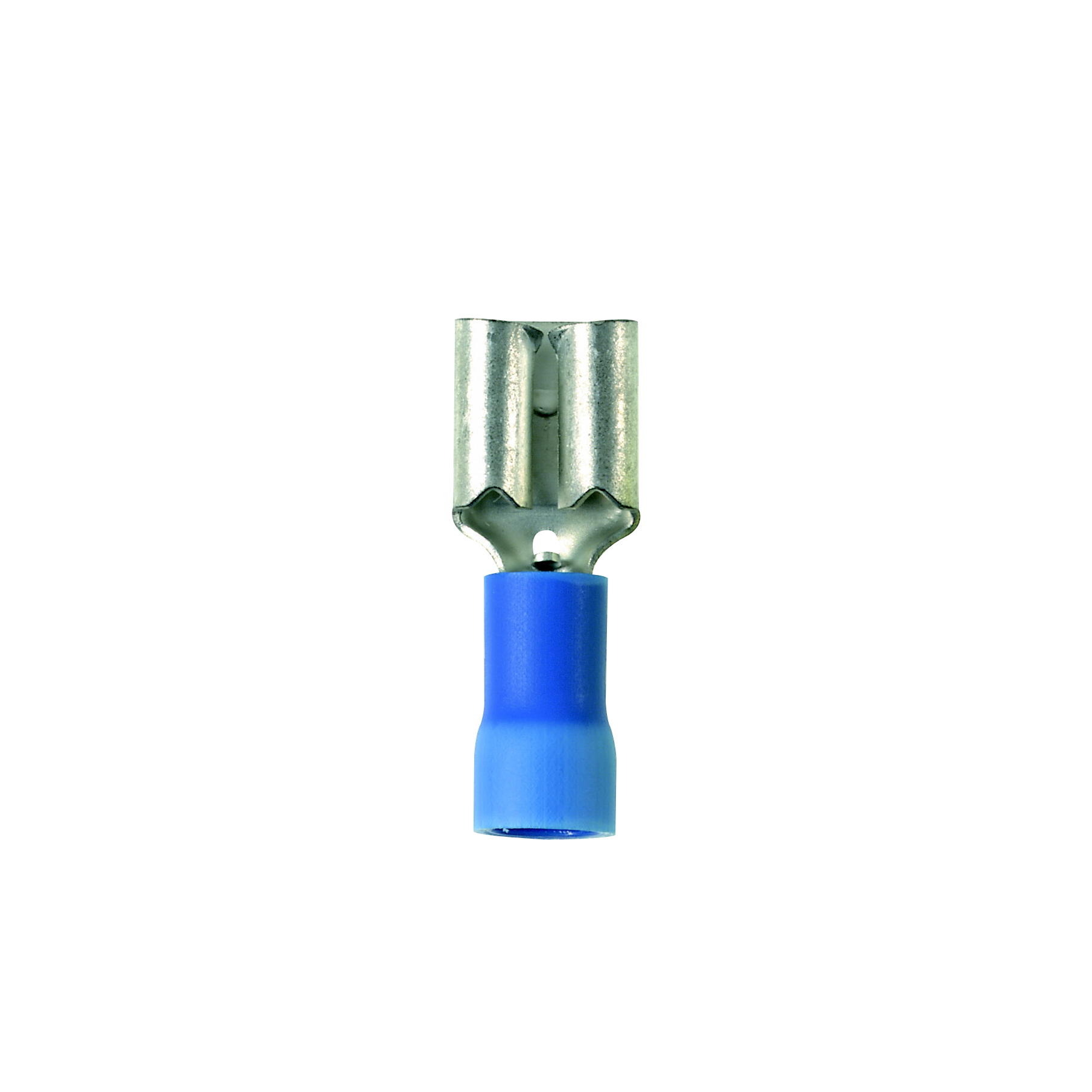

Product image for Panduit DV14-250B-E Female Disconnect, Vinyl Barrel Insulated, 16 - 14 Awg, .250 X .032 Tab Size, Butted Seam, Terminal Convenience Package
Image thumbnail 0
Image thumbnail 1
Email

Panduit DV14-250B-E Female Disconnect, Vinyl Barrel Insulated, 16 - 14 Awg, .250 X .032 Tab Size, Butted Seam, Terminal Convenience Package

Manufacturer: Panduit | Catalog # DV14-250B-E | North Coast Part # 648543
$176.51/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
16 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Loose Piece Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term

General Product Info

12-Digit UPC
074983343553
Color
Blue
Finish
Tinned
GTiN
00074983343553
Product Type
Terminals
Product UPC
07498334355
UNSPSC
39121409

Dimensions

Height
0.12 Inch
Length
0.81 Inch
Overall Length
0.81 in
Width
.29 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No
Country of Origin
Mexico
Hazmat Flag
No
