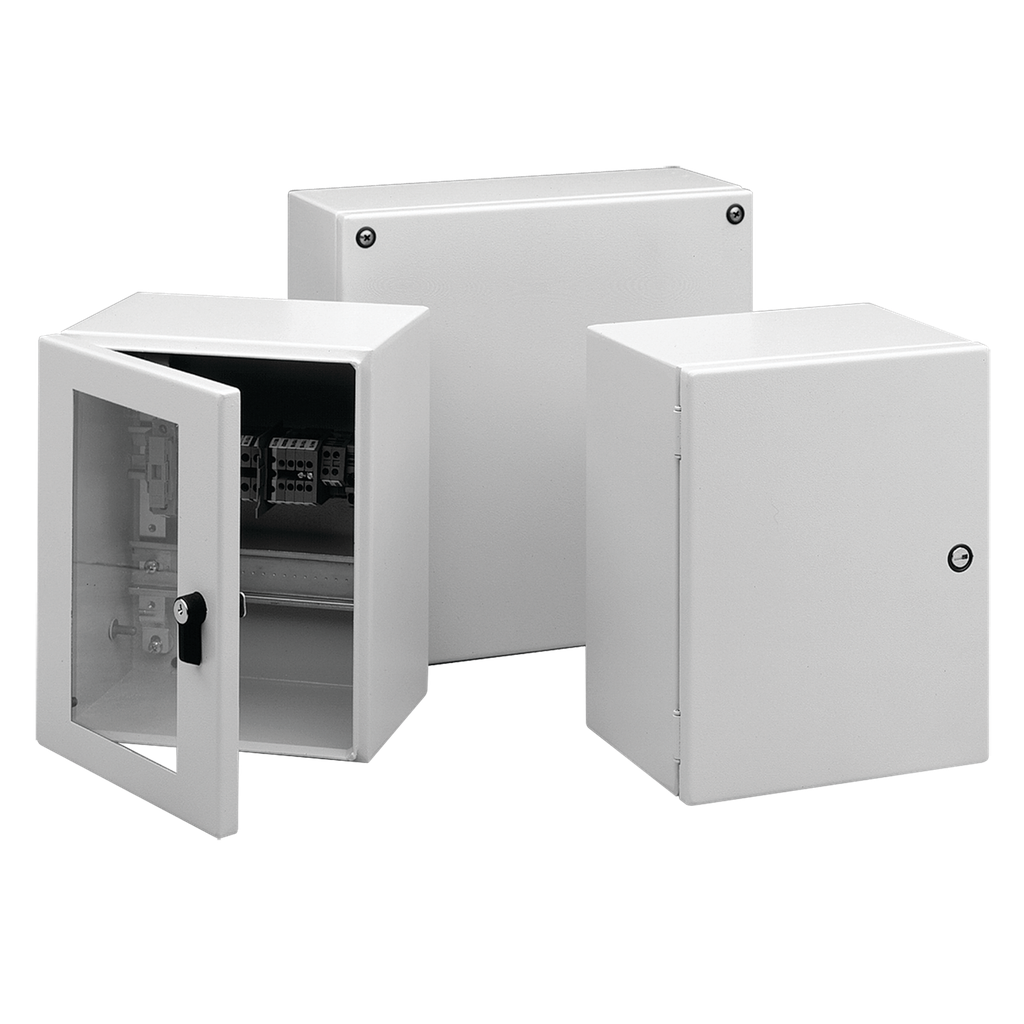

Product image for Hoffman LWC302515 INLINE Type 4, 300x 250x 150mm, Lt Gray, Steel
Email

Hoffman LWC302515 INLINE Type 4, 300x 250x 150mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # LWC302515 | North Coast Part # 649633
$337.05/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Aesthetic styling, with an attractive, durable light-gray finish, makes InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed flange to prevent contaminants from entering the enclosure and are available in three versions: window door, hinged solid door and solid screw cover.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Cover Type
Hinged, Window, Screw, Quarter-Turn Latch
Material
Steel
Mounting Type
Flush
Size
300x250x150mm
Standard
12,4,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 6,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4 And 12,Type 3,UL 508A Listed
Type
Single Lock, Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Inline™

General Product Info

12-Digit UPC
783510611507
Color
7035 Light Gray
Finish
Powder Coated
GTiN
00783510611507
Product UPC
78351061150
Weight
8.5 lb

Dimensions

Depth
150 mm
Height
300 mm
Length
12 Inch
Thickness
1.52 mm
Width
250 mm
Features
  • Metric dimensions
  • 16 gauge steel
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
