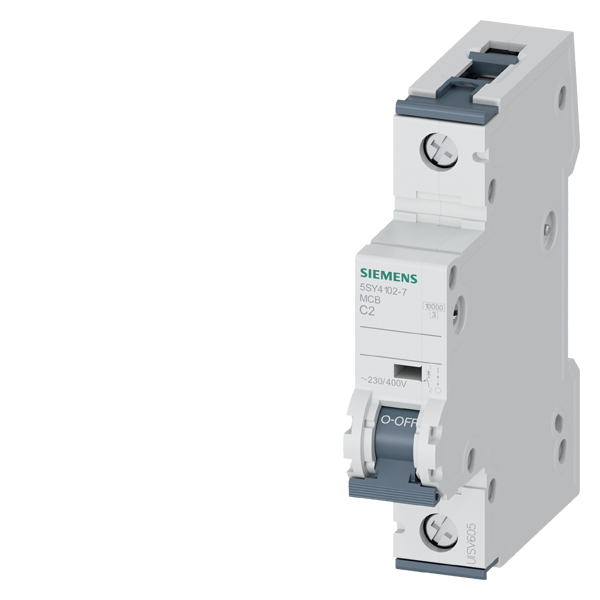

Product image for Siemens 5SY4102-7 2 Amp C Curve 1-Pole Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY4102-7 2 Amp C Curve 1-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4102-7 | North Coast Part # 650845
$52.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
SUPPLEMENTARY PROTECTOR,1P,2A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 2 Amps, 277 VAC, Trip Characteristic Curve C, 18mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
2 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
2 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
Quick Assembly System
Number of Poles
1 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
CSA,E2186,UL
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Push Button Box
Voltage
400 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554864020
Class
C
GTiN
04001869181325
Product UPC
75455486402
Weight
0.350 lb

Dimensions

Depth
76 mm
Height
3-1/2 Inch
Length
1.3 Inch
Width
4.000 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.017 kg
Green End-of-Life CO2
0.166 kg
Green Manufacturing CO2
0.674 kg
Green Total CO2
8.601 kg
Green Transport-to-DC CO2
0.121 kg
Green Use-Phase CO2
7.623 kg
