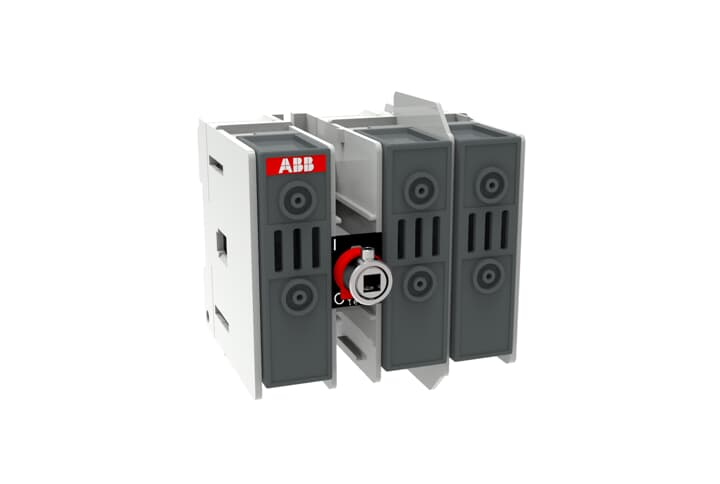

Product image for ABB OS30FAJ12 600 VAC 30 Amp 3-Pole Open Fusible Disconnect Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

ABB OS30FAJ12 600 VAC 30 Amp 3-Pole Open Fusible Disconnect Switch

Manufacturer: ABB Inc. | Catalog # OS30FAJ12 | North Coast Part # 651089
$616.71/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Pick Up

at Auburn Closes 3:00pm PT
14 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
3 pole, 30 amps rated at 600 VAC, UL 98, open fusible disconnect switch for use with J fuse type

Technical Information

Amperage
30 Amp
Applications
For Use with J Fuse Type
Connection Type
Screw Terminal
Fuse Type
Class J
Load Rating
7.5 hp at 240 V, 15 hp at 480 V, 20 hp at 600 V, 7.5 kW at 220 - 240 V, 15 kW at 400/415 V, 18.5 kW at 500 V, 22 kW at 690 V
Mounting Type
Base
Number of Poles
3 Pole
Size
143x100x119mm
Standard
UL98IEC 60947-3
Terminal Type
Screw Terminals
Type
Front Operated, Fusible, Open
Voltage
600 VAC
Wire Size
2.5-25 mm
