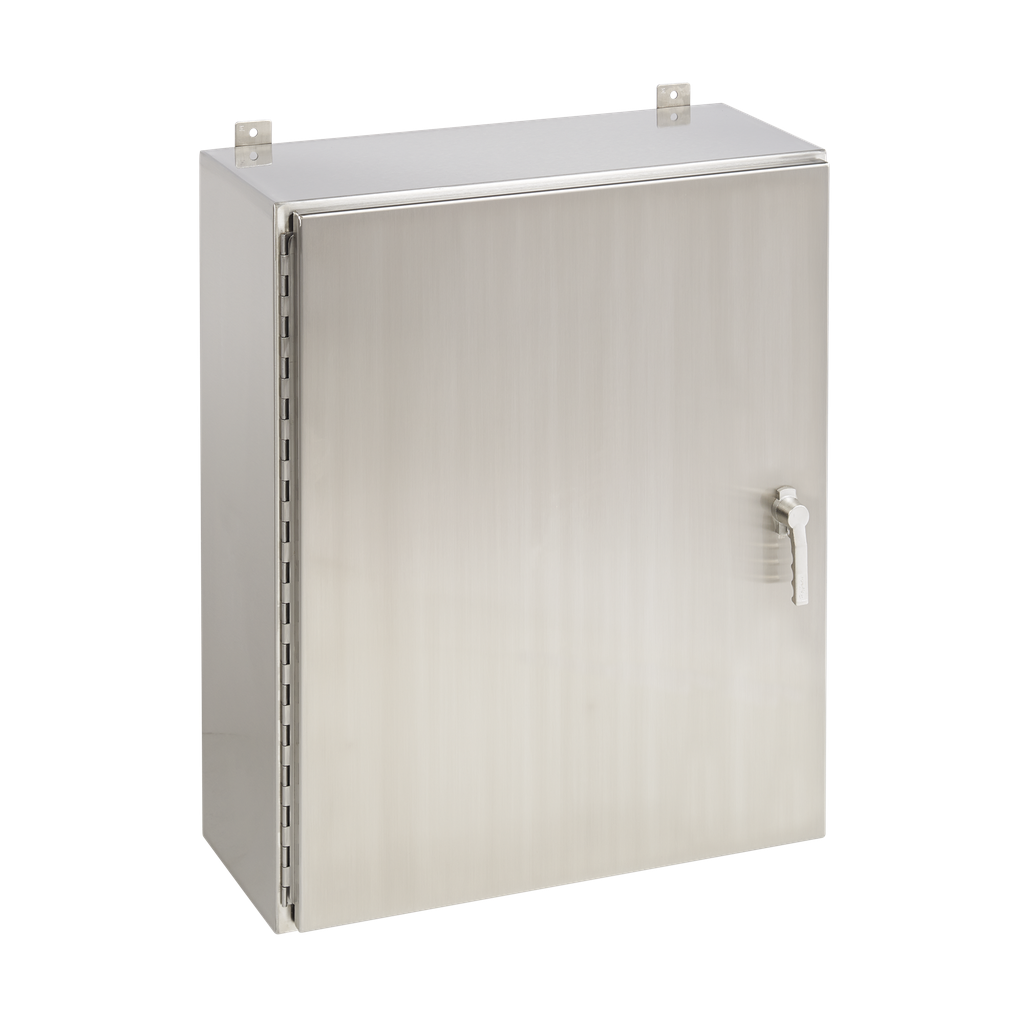

Product image for Hoffman A48H3612SS6LP3PT Continuous Hinge with 3-Point Latch, Type 4X, 48" x 36" x 12", SS Type 316L
Email

Hoffman A48H3612SS6LP3PT Continuous Hinge with 3-Point Latch, Type 4X, 48" x 36" x 12", SS Type 316L

Manufacturer: nVent Hoffman | Catalog # A48H3612SS6LP3PT | North Coast Part # 658260
$8,334.46/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.

Technical Information

Applications
For Indoor, Outdoor
Cover Type
Continuous Hinge with 3-Point Latch
IP Rating
66
Material
Stainless Steel
Mounting Type
Wall
Size
48.00x36.00x12.00 in
Standard
12,13,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Type
Gangable, Single Door, Single Lock

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510143466
Color
Unpainted
Finish
Powder Coated
GTiN
00783510143466
Product UPC
78351014346
Weight
130 lb

Dimensions

Depth
305 mm
Height
1219 mm
Length
53 Inch
Thickness
2 mm
Width
914 mm
Features
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Rolled lip around three sides of door
  • Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
  • Remove door by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
  • Bonding provision on door; grounding stud on body
