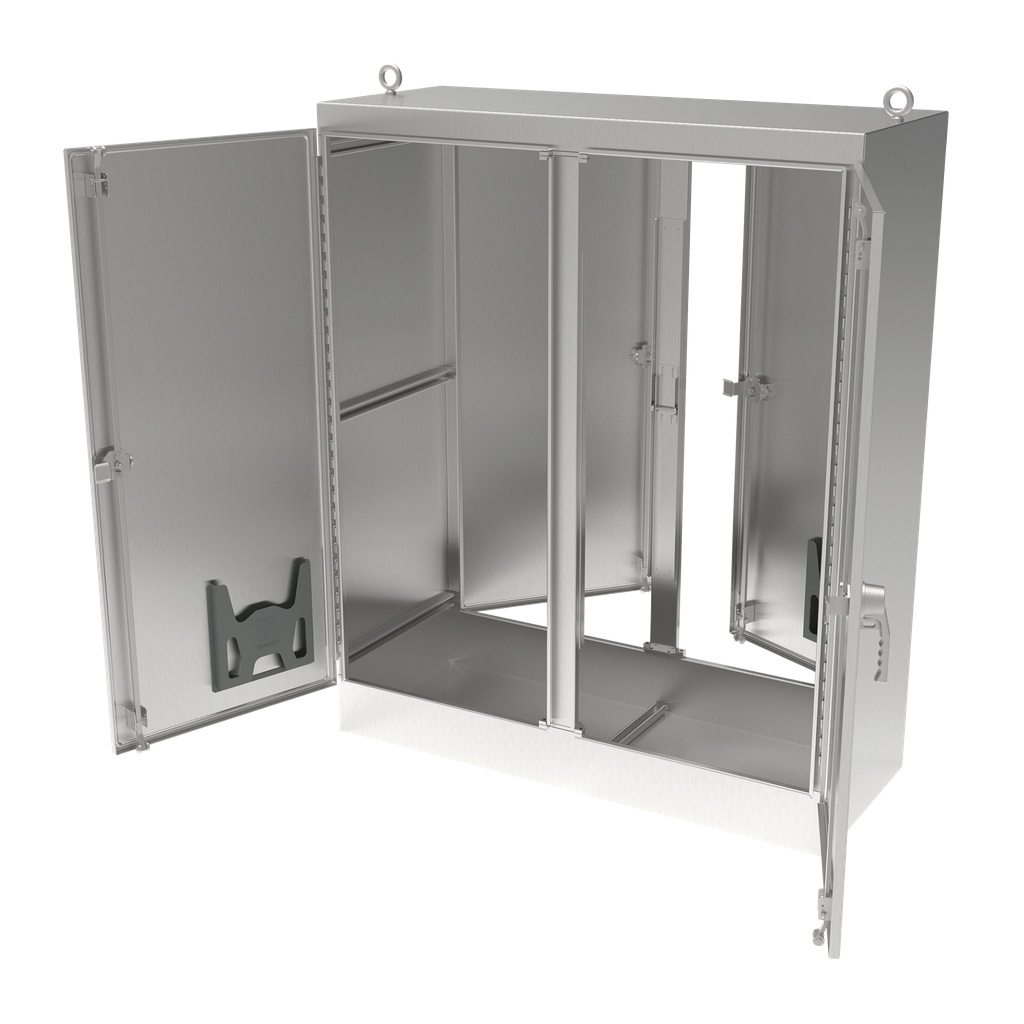

Product image for Hoffman A904820SSFSDN4 Free-Stand Single and Dual Access with 3-Point Latches, Type 4X, 90.06" x 48.06" x 20.06", SS Type 304
Email

Hoffman A904820SSFSDN4 Free-Stand Single and Dual Access with 3-Point Latches, Type 4X, 90.06" x 48.06" x 20.06", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A904820SSFSDN4 | North Coast Part # 661872
$25,732.91/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries. Four styles are available to provide maximum flexibility.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
IP Rating
66
Material
Stainless Steel
Size
90.06x48.06x20.06 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,E.I.A. RS-310-D,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510111748
Color
Unpainted
Finish
Brushed
GTiN
00783510111748
Product UPC
78351011174
Weight
550 lb

Dimensions

Depth
20.06 Inch
Height
100 Inch
Length
56 Inch
Thickness
2.78 mm
Width
34.00 in
Features
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Two-door enclosures provided with a removable centerpost for easy panel installation
  • Heavy-duty lifting eyes are Type 316L stainless steel
  • Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
  • Seemless foam-in-place gasket assures a water-tight and dust-tight seal
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-gauge continuous hinges support each door
  • High-impact thermoplastic data pocket provided with each enclosure
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Optional panels and rack mounting angles can be mounted anywhere along channels
  • Bonding provision on door; grounding stud on body
  • Accessory mounting channel provided in enclosure top
