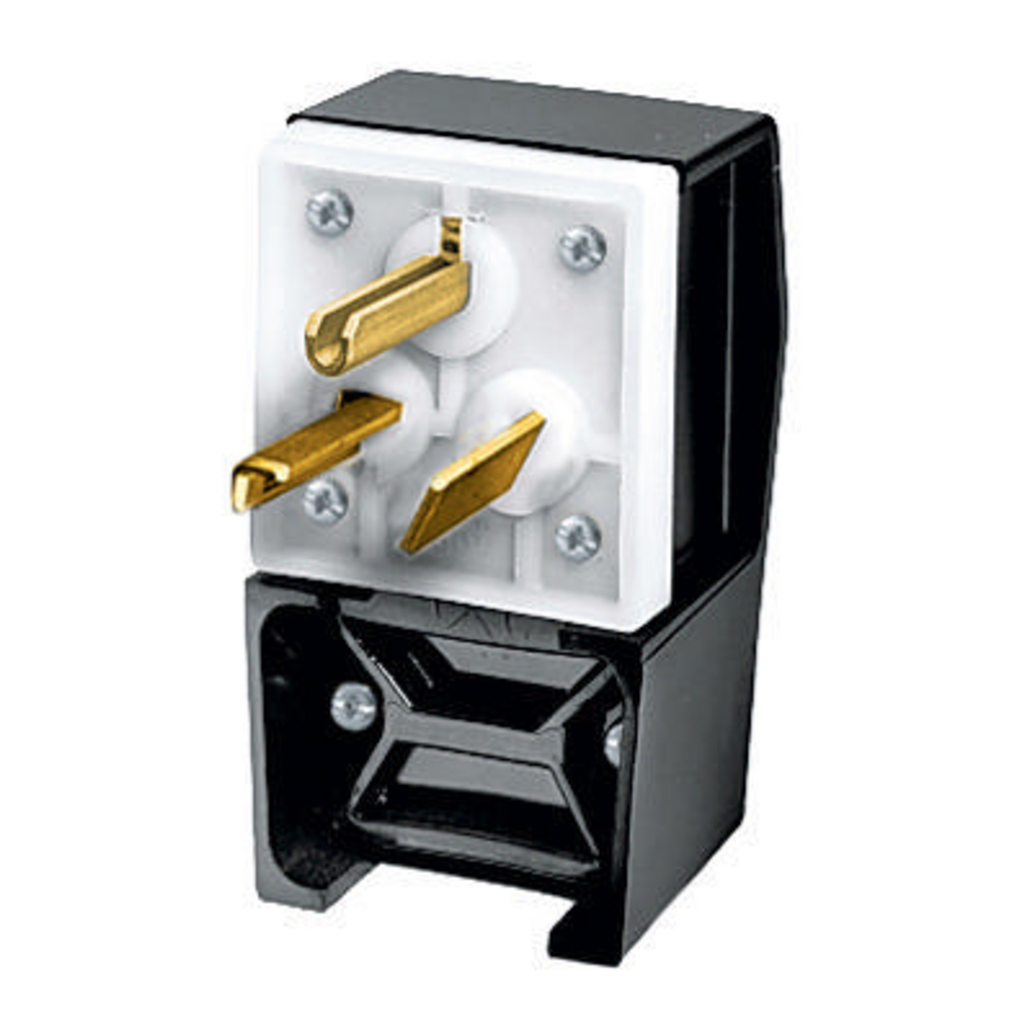

Product image for Hubbell HBL9319 30 Amp 277 VAC 2-Pole 3-Wire NEMA 7-30P Black Nylon Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL9319 30 Amp 277 VAC 2-Pole 3-Wire NEMA 7-30P Black Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL9319 | North Coast Part # 66466
$172.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Nylon, 4- Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 277V AC, 7-30P, Black, Single Pack.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
30 Amp
Horsepower
3 hp
Material
Composite
NEMA
7-30P
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,UL,UL498 File E1706
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
277 Volt
Wattage
8310 Watt
Wire Count
3
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015521
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585015521
Product UPC
78358501552
Weight
0.55 lb

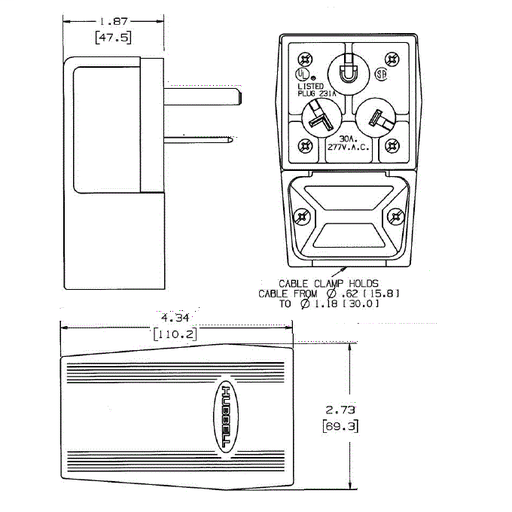

Dimensions

Height
1.88 Inch
Length
4.34 Inch
Width
2.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon
  • 4- Position
  • Heavy Duty
