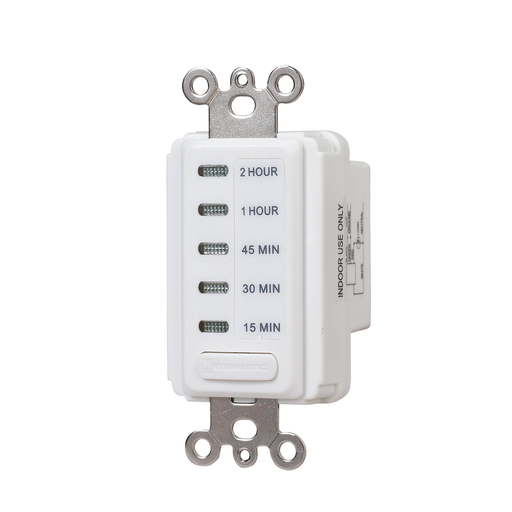

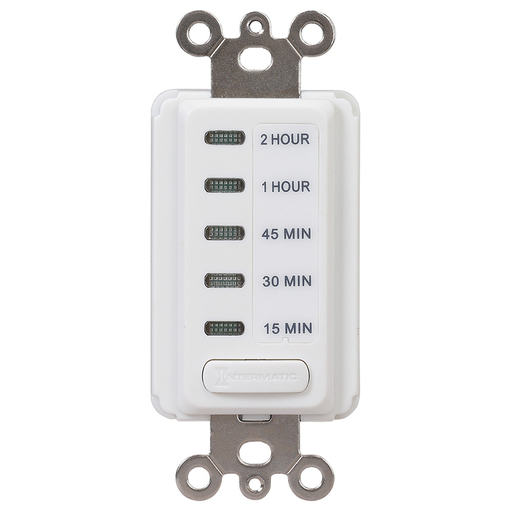

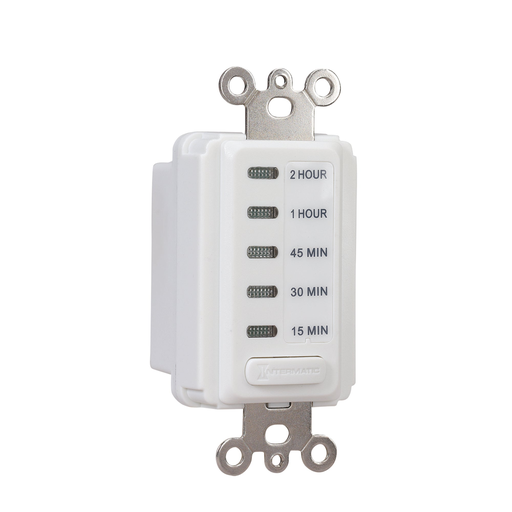

INT-MAT EI235W 15/30/45/60 MINUTE T

Manufacturer: Intermatic | Catalog # EI235W | North Coast Part # 667680
$62.30/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability
Specification Sheet
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Contact Configuration
1 NO
Contact Rating
8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater)
Frequency
50/60 Hz
Input Voltage
120 V
Max Operating Temperature
122 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Standard
CULus Listed,California TITLE 24 Compliant,HVACR
Type
Electronic Countdown Auto Shut-Off In-Wall
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Family Brand Name
Intermatic

General Product Info

Color
White
GTiN
00078275111202
Product UPC
07827511120

Dimensions

Depth
1.4375 in
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.6875 in
